Laplace's Web Camera Set allows real-time status monitoring even in remote locations where on-site inspection is difficult. It can detect abnormalities such as panel damage or dirt, which may not be immediately noticeable from power generation data or Inverter error information. The set provides a complete package, including the web camera, router, communication lines, and other necessary equipment for remote monitoring, adding visible reassurance and providing strong support for remote monitoring.
※To install the Web Camera Set, a contract for the remote monitoring system and service L・eye is required.
Detailed monitoring down to each Inverter and string level provides comprehensive visibility, adding the reassurance of on-site monitoring to thoroughly support O&M!

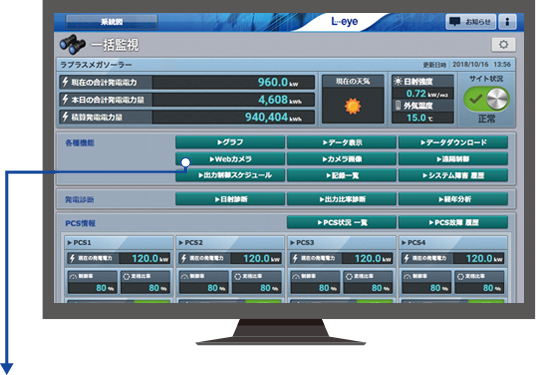

The L・eye monitoring screen collects and displays a wide range of information, including the power generation status of the Inverter, allowing you to easily check the measurement status anytime, anywhere. By combining the Web Camera Set with the reliable L・eye monitoring screen, we achieve a more comprehensive remote monitoring system for solar power plants.

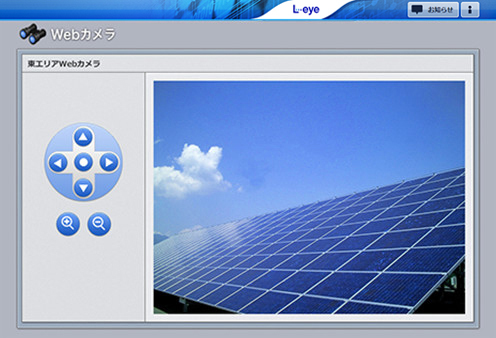

You can freely control the web camera with zoom, tilt (up and down), and pan (left and right) functions.
The demo site is here.
※The demo site does not allow you to operate the web camera.
We have achieved low prices by providing the equipment necessary for on-site monitoring, such as routers, and LTE lines in a compact package.

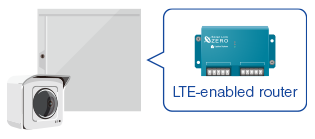

Since it uses an LTE connection, it can be installed without special construction as long as there is an AC 100/200V power supply. Additionally, because it uses PoE (Power over Ethernet) for power supply, no separate power source is required for the web camera.

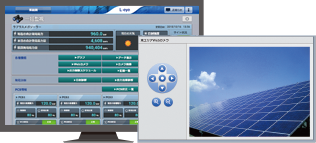

With the L・eye monitoring screen, you can check both the power generation status and real-time images of the site from the web camera. It also features operational functions that allow you to focus on specific areas of interest.
| Supported Operating Systems | Windows 11 |
|---|---|
| Supported Web Browsers | Google Chrome / Mozilla Firefox / Microsoft Edge(Always the latest version) |
| Screen Resolution | A resolution of 1280×1024 pixels or higher is recommended (1024×768 pixels is also supported). |
| Others | Internet connection is required. |
| Resolution | 640×480 pixel ※It may vary depending on the terms of your contract. |
|---|---|
| Operation | Tilt, Pan, and Zoom are available. |
| Update Frequency | 3 seconds per update ※It may be delayed depending on the operating environment. |
| Size | W319.0×H314.0×D140.0mm |
|---|---|
| Material | AAS Resin |
| IP Rating | IP44 |
