Embedding in the storage panel

In the case of continuous and long-term measurement, it is rarely necessary to wire signal lines directly to bare measuring instruments at measurement sites. It is common practice to store measuring instruments and other equipment in a storage panel and receive signal lines at a terminal block for wiring.

Examples of problems that can occur if not installed in a storage panel

caution.svg
caution1.svg

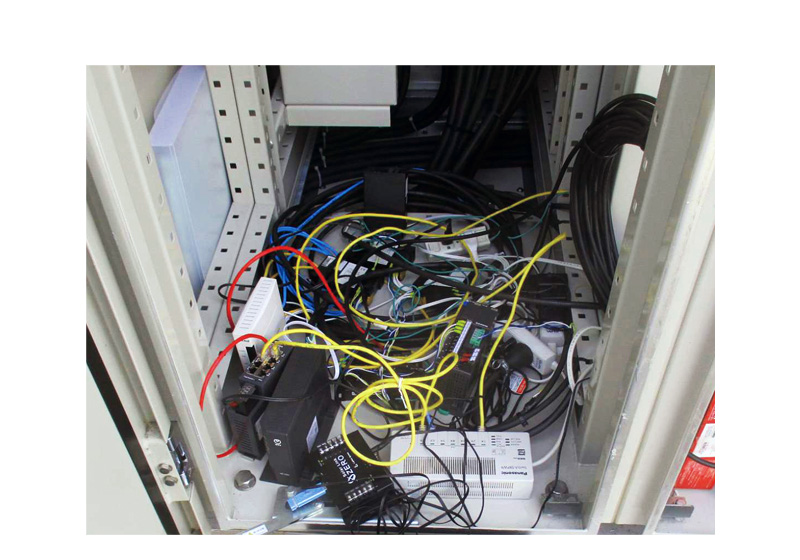

photo1.jpg Possibility of human-induced problems

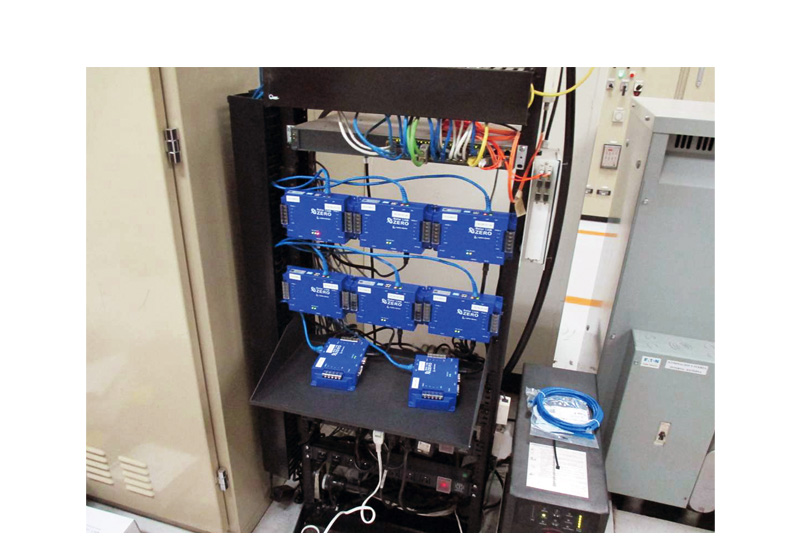

photo2.jpg Measuring equipment not stored in a storage panel

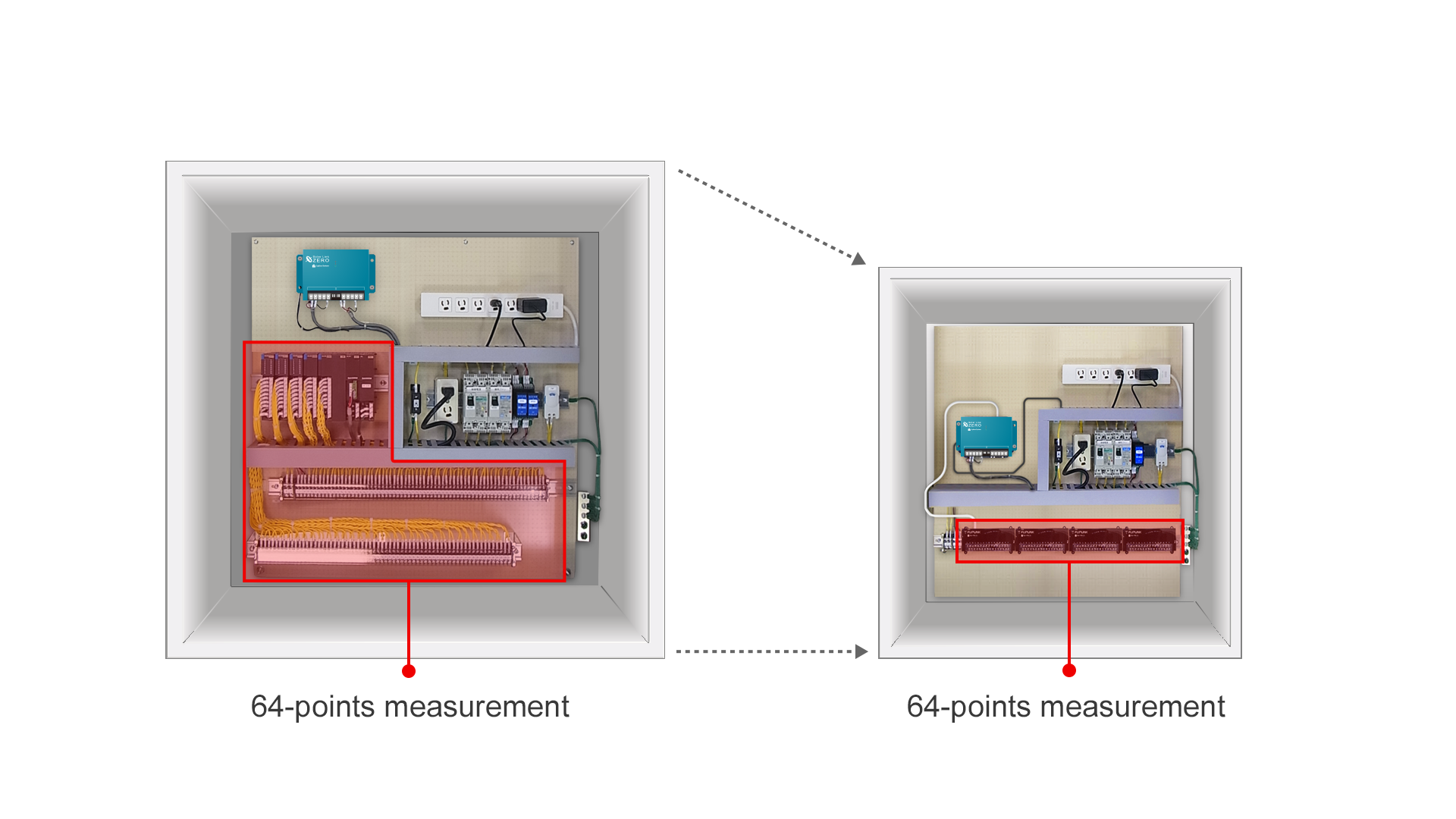

Compact storage panel

By integrating the measuring instrument and terminal block, the storage panel can be made compact.

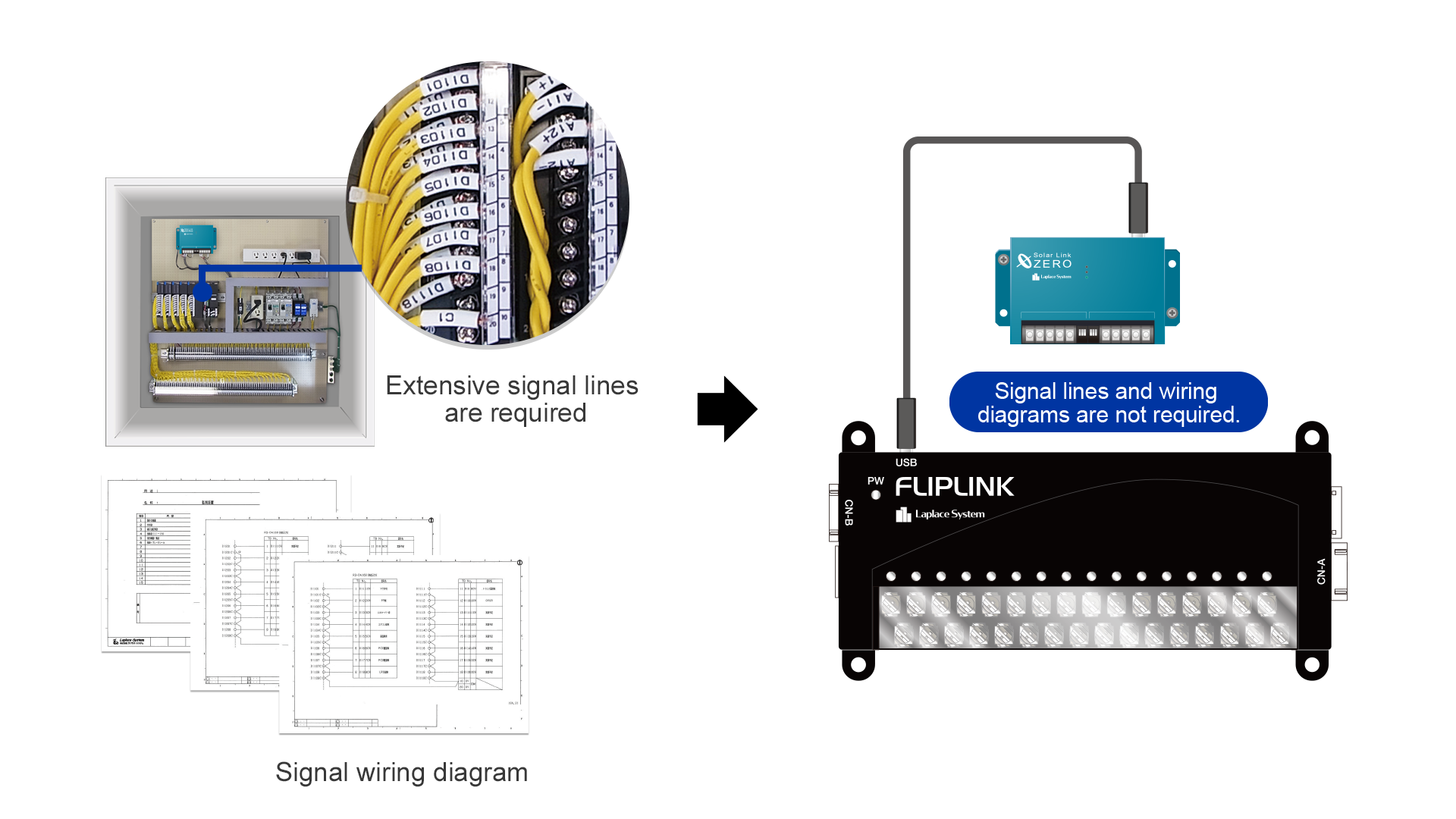

Labor-saving wiring work

No wiring of signal lines in the panel is required, eliminating work and reducing wiring errors.

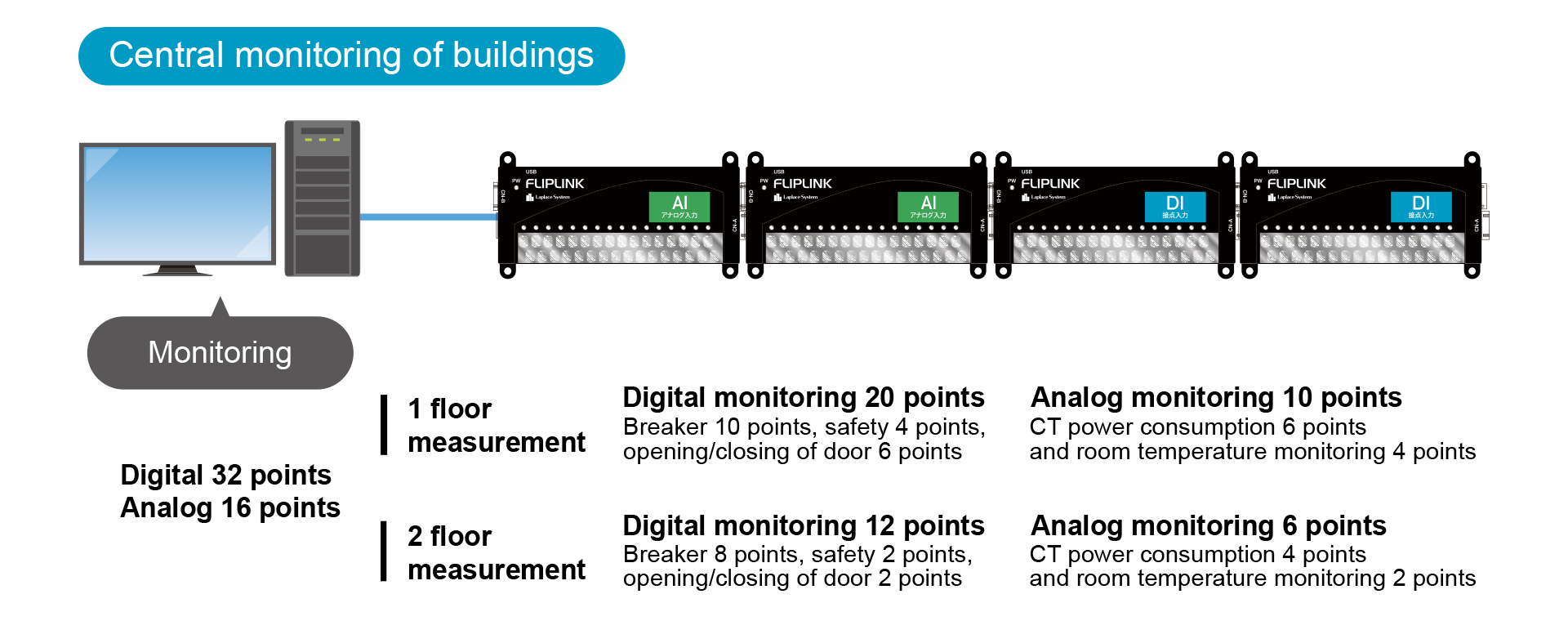

Ideas for FLIPLINK usage scenarios

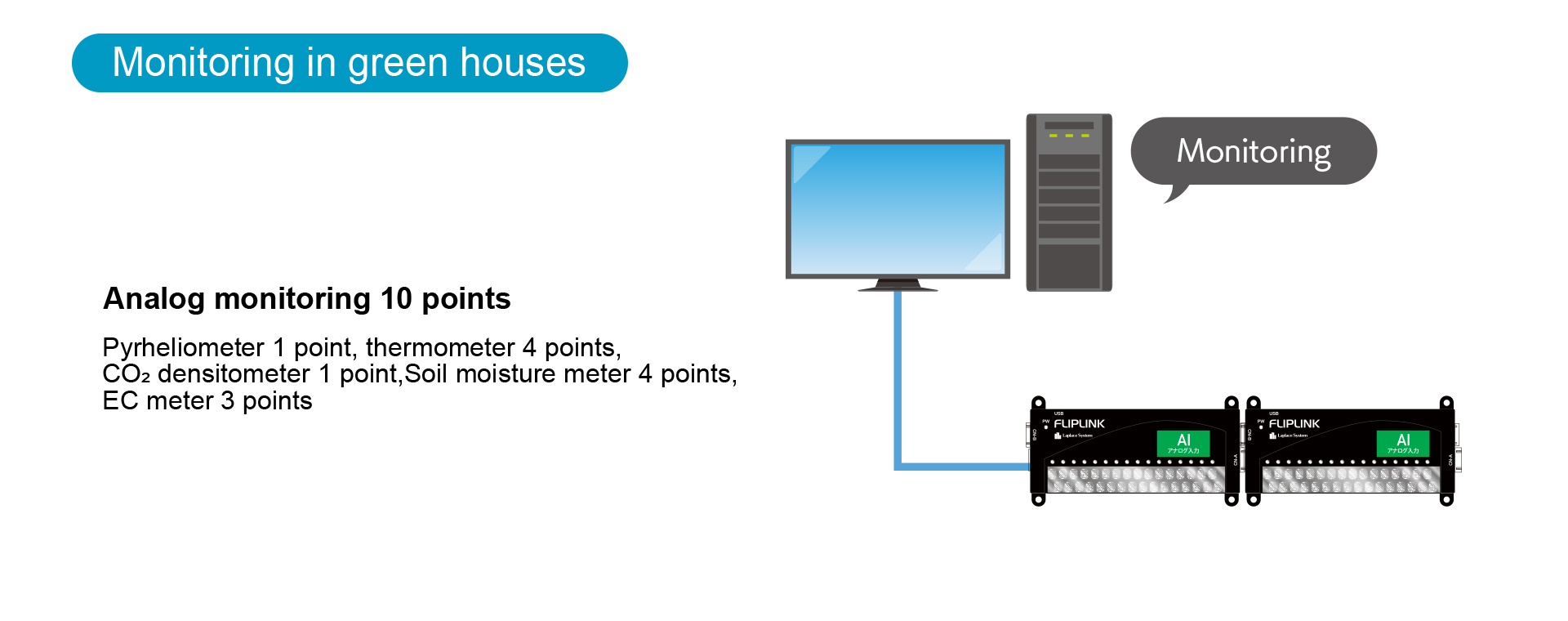

Agriculture 1

Target

Solar radiation intensity, Temperature, Soil moisture, pH

In order to equalize the amount and quality of crops, environmental information on scattered agricultural land is collected and analyzed, and farming independent of experience value is carried out.

Agriculture 2

Target

Intrusion sensor (digital input), patrol light (digital output)

By cooperating with the intrusion sensor, the intrusion of the offender is detected, and the lighting of the patrol light and the notification of an abnormal situation are carried out.

Factory

Target

Pump pressure, fan air volume, hydraulic pressure,torque rotation, motor vibration

Measuring component movements of equipment leads to the maintenance of machineries and equipment and the hazard prediction.

Station

Target

Operating hours, operating conditions, faults,and number of operations

Monitoring and maintenance of automatic platform gates installed at stations

Refrigerated warehouses, trucks, restaurants

Target

Temperature, opening/closing of door

For appropriate temperature control of foodstuffs, temperature and opening/closing of door information in freezers and refrigerators will be summarized and used for appropriate equipment maintenance and history information publication, etc.

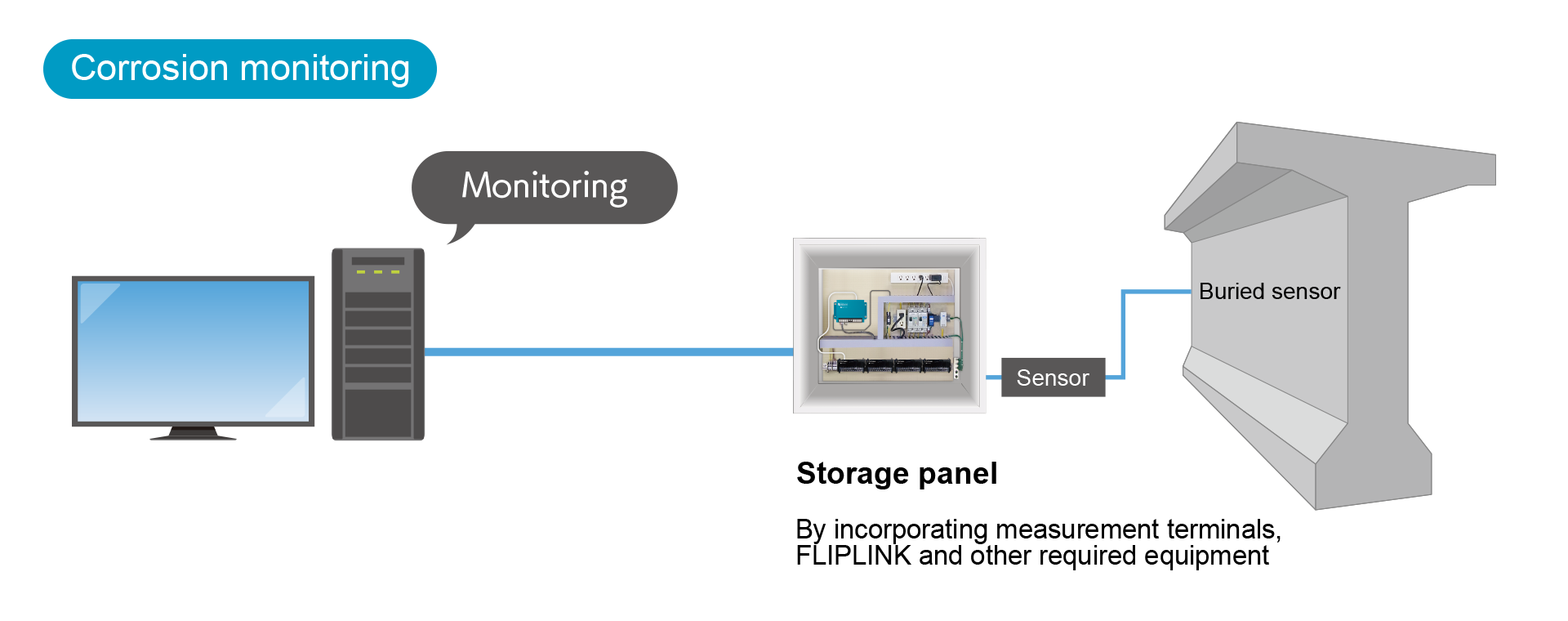

Local governments

Target

Strain, Temperature and Humidity

In order to reduce the maintenance and management costs of infrastructure (bridges, roads, tunnels, etc.) and to save labor, collect information scattered throughout the area and carry out efficient maintenance.
