Functions

Create the Optimal Screen by Combining Basic and Optional Features.

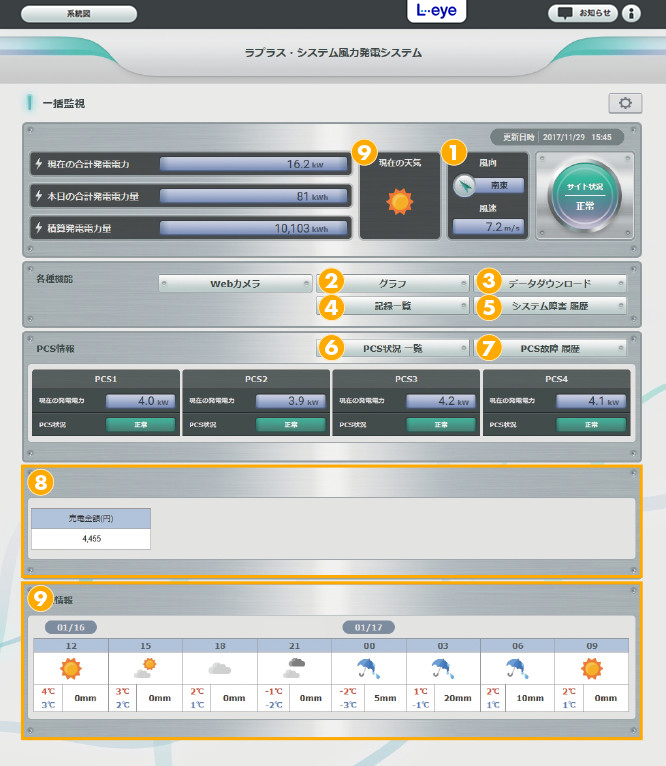

Wind Power Plant Monitoring Screen
■ Basic Features
1.Wind Direction and Wind Speed Display
Displays the wind direction and wind speed
measured at the power plant.
You can check whether power generation is occurring
according to the wind speed.
※If wind direction and wind speed are not measured, this will not be displayed.

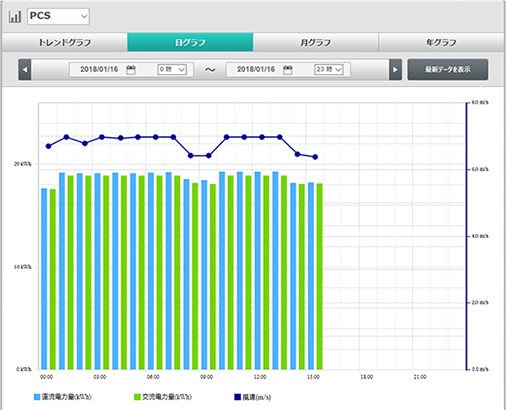

2.Graph
Along with wind speed, it is possible to display power by Inverter unit or total power.
You can also switch between graph views for trends, daily, monthly, and yearly data.

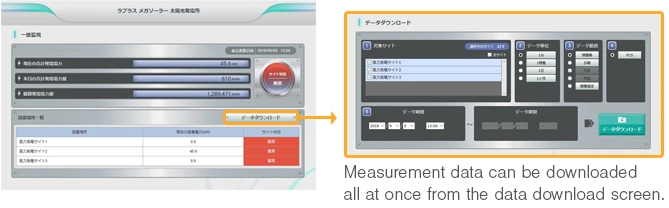

3.Data Download
Download the measured data in CSV format.
4.Record List
Register necessary information for site management.
Useful for logging maintenance records.
5.System Failure History
Check and download the occurrence and recovery history of communication failures
between measurement devices and the server in CSV format.
Notifications can also be sent via email.
6.Inverter Status Overview
Displays the current voltage, current, and power of each Inverter,
the daily cumulative power generation, and operational status.
7.Inverter Failure History
PView the detailed failure occurrence and recovery history of Inverter, and download it in CSV format.
Notifications can also be sent via email in case of Inverter failures.
8.Flexible Area
A customizable area where you can add, remove, and arrange measurement values to be displayed.
9.Weather Information
Display the current weather and forecasts for today and tomorrow.
※Configuration by the customer is required.
※This feature may not be available on some sites.


■ Optional Features

Group Monitoring
If measurements are conducted at multiple sites, they can be monitored collectively as a group,
allowing you to check the total power generation across all sites.
Measurement data from each site can also be downloaded in CSV format.

※Multiple group monitoring screens can be consolidated into a higher-level group for hierarchical management.
Group Monitoring Image

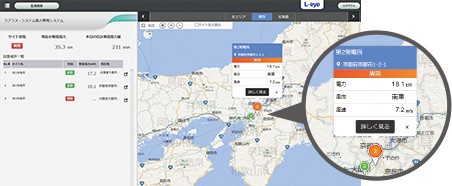

Power Generation Site Map
Monitor each site in the group in a list format,
with pins placed on a map to show the location of power plants.
※Clicking on a pin displays information such as power generation data.
Power Generation Site Map Image

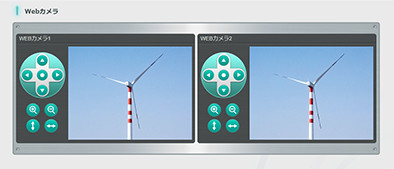

Web Camera
Check the surroundings of the power plant in real time.
A "Web Camera Set" that includes a web camera and
necessary equipment is available for easy installation.
Web Camera Image


Page Top

Package Configuration Examples

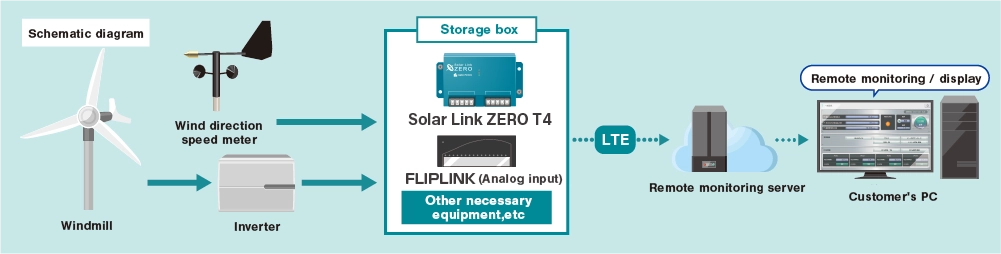

Without Output Curtailment

A simple configuration focused on Inverter measurement,
with measuring devices integrated into a box with communication functions.
When measuring wind direction and wind speed, FLIPLINK will be used to measure analog inputs.

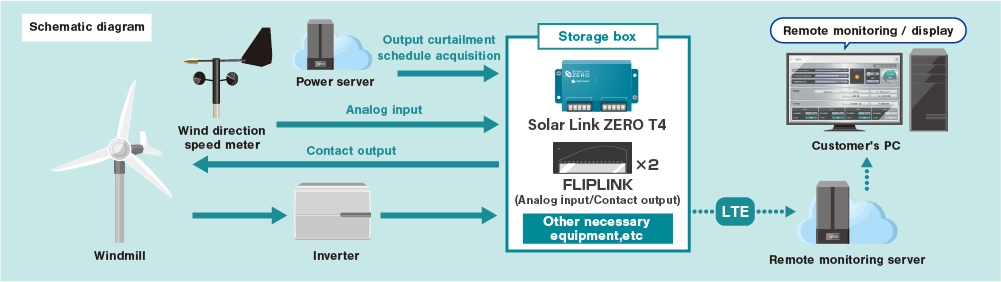

Without Output Curtailment ※Click the image to enlarge it.

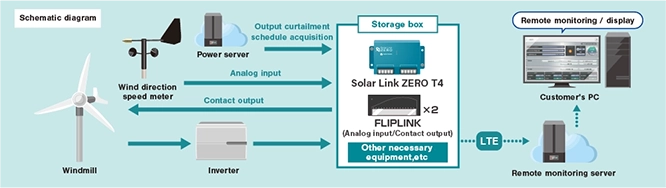

With Output Curtailment
