Solar Link Viewer

Vivid display! Measurement made user-friendly

Contact Us

Overview

A new measurement display that captivates with vibrant design.

The Solar Link Viewer combines advanced measurement capabilities with impactful display features. It is easy to use for tasks such as importing photos and setting up automatic screen rotation. The system also comes standard with features like displaying the power conditioner’s status history (detailed failure history), making it a fully equipped monitoring device. Additionally, the measurement display on large screens is easy to understand and features an eye-catching design. It effectively showcases the system’s status and its environmental impact reduction benefits with impressive appeal.

Page Top

Features

画面例

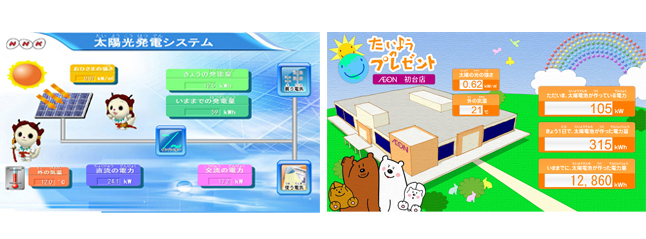

Screen Design
The measurement display screen is vibrant and attention-grabbing. You can choose from a variety of designs based on the installation location and purpose. Customization to suit the installation system is also available. With dynamic animations linked to power generation, it keeps viewers engaged while effectively showcasing the environmental impact reduction benefits of the system in an approachable way.
Importing photos and setting up automatic screen rotation are made more user-friendly.
You can easily incorporate photos and images provided by the customer into the screen display. By following the software's instructions, you can quickly create an original screen. The order and interval of the automatic screen rotation can also be adjusted while previewing the changes.
Detailed Failure History (Power Conditioner Status History Display and Storage)
Displays the status history of power conditioners from certain manufacturers. You can also view the history monthly in CSV format. Note: Supported manufacturers will be added gradually. Customization is available to notify specified email addresses in case of failure. (Please note that the PC must be connected to the internet, and communication fees will be borne by the customer.)
User-Friendly Menu Bar
The key menu bar is easy to understand and intuitive to operate.
Create New Design
Create New Design
You can create a new screen design tailored to your company's image or PR content.
ODA Project Support
Please contact us for measurement and PR display support for overseas ODA projects.

Page Top

Page Top

Product Image

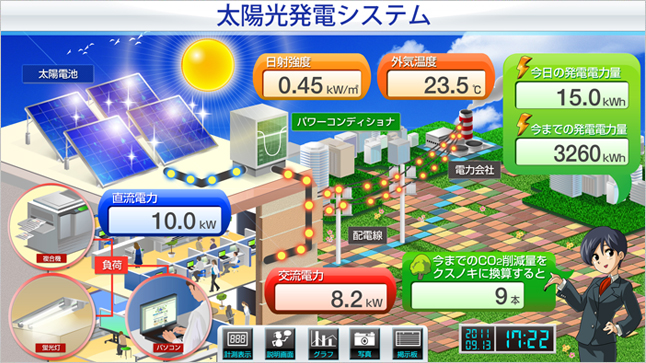

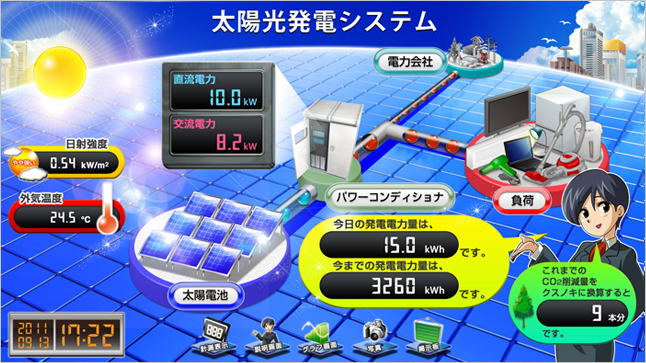

Product Screen Example 01

Product Screen Example 01

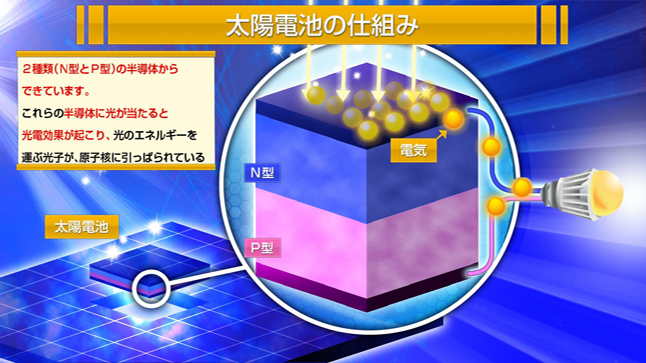

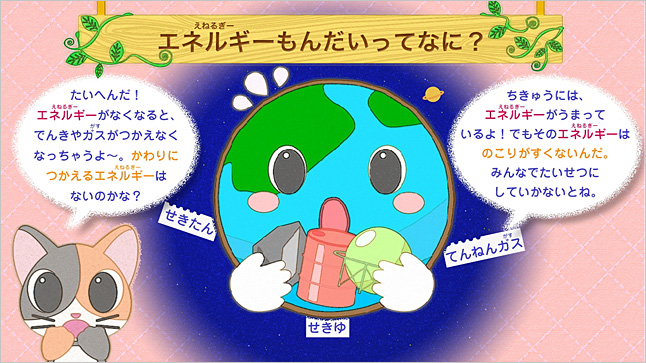

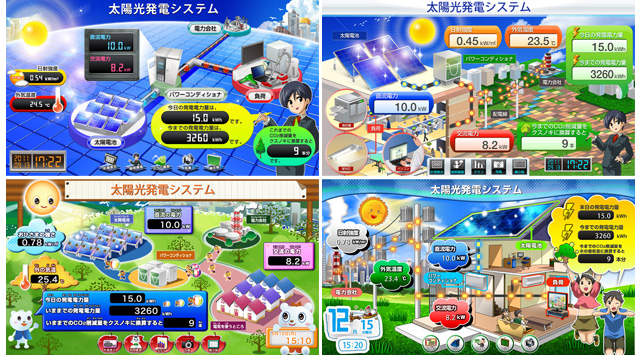

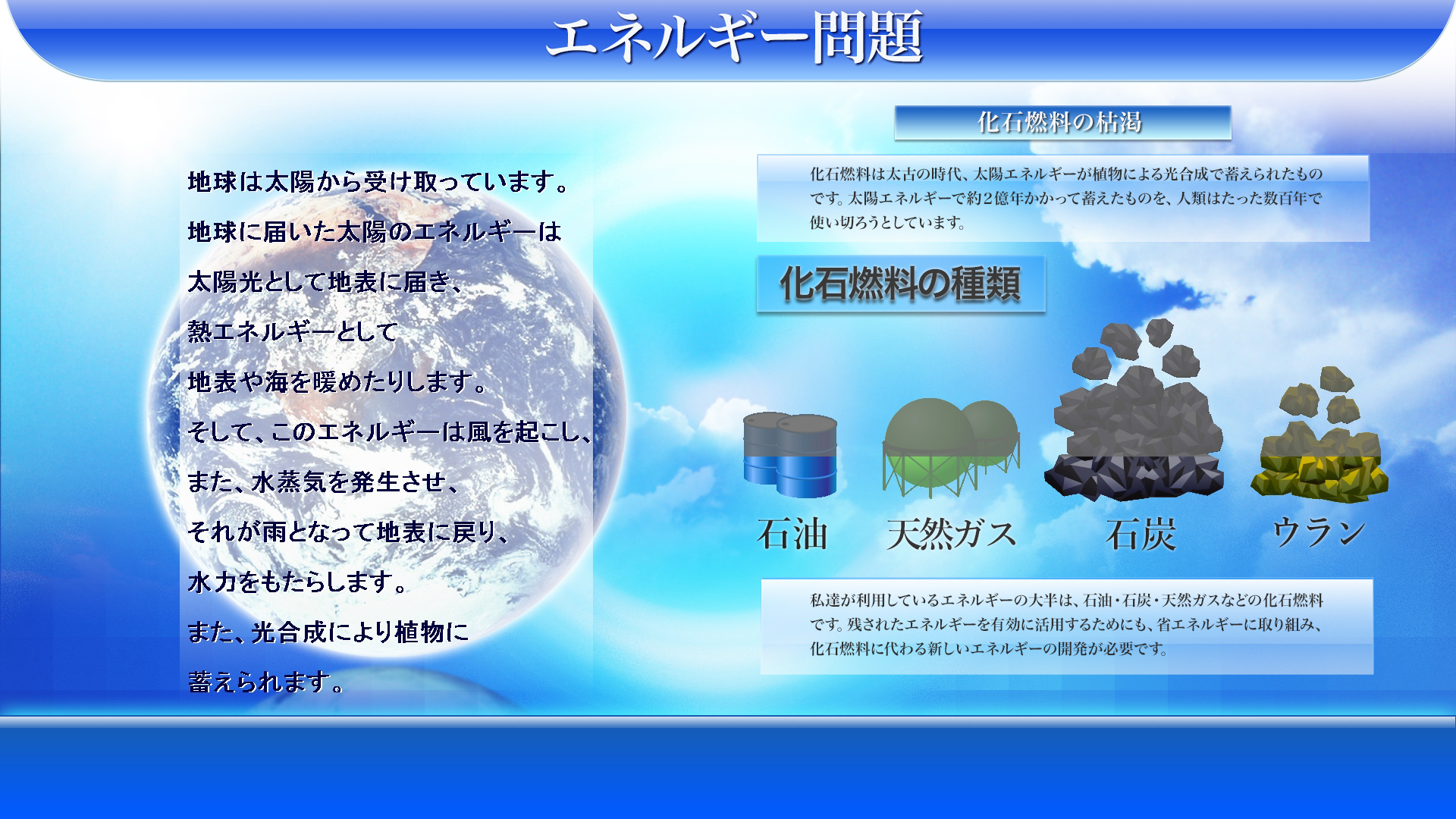

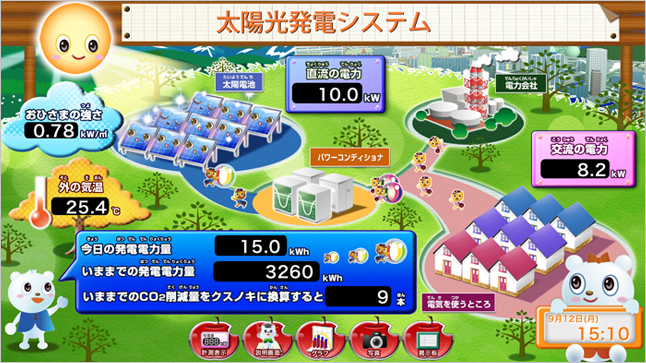

Product Screen Example 01Product Screen Example 0Product Screen Example 03　Prepare various screen stylesExample of an Explanation Screen: How Solar Panels WorkExample of an Explanation Screen: Energy Issues Kindergarten screen

Page Top

Specifications

Measurement Specifications Measurement Channels Up to 1000 channels
※For more than 1000 channels, please consult with us.
Data Capacity Depends on the number of channels.
※Measurement data is approximately 100MB per year (for 40 channels).
Display Specifications Content Count Photovoltaic Power Generation
・
Storage battery		 1 Measurement Display Screen, 9 Explanation Screens, 5 Graph Screens, 1 Bulletin Board Screen, Photo Screen
User Content Screen
※The number of photo screens and user content screens can be adjusted.
Storage battery
(Self-consumption)		 1 Measurement Display Screen, 8 Explanation Screens, 5 Graph Screens, 1 Bulletin Board Screen, Photo Screen.
User Content Screen
※The number of photo screens and user content screens can be adjusted.
Geothermal 1 Measurement Display Screen, 4 Explanation Screens, 4 Graph Screens, 1 Bulletin Board Screen, Photo Screen.
User Content Screen
※The number of photo screens and user content screens can be adjusted.
Image File Formats BMP, JPEG, LPEG (Laplace System's proprietary format), PNG
Video File Formats AVI, WMV, ASF, MP4
Supported OS Windows 11 Pro
