Currently, Solar Pro 5.0 is released in the Japanese version only.
Subscription Service Now Available
High-Precision Solar Power Generation Simulation
Offered on a monthly basis
I want to always use the latest version!
I want to reduce initial costs!
I only need to use it for a short period!
* An initial setup fee is required separately.
* A traditional one-time purchase plan is also available.
Features

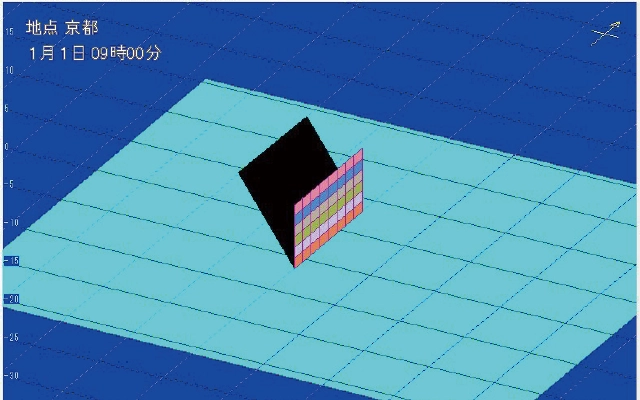

Supports bifacial modules
It is now possible to simulate the amount of power generated when using bifacial modules.Accurate calculations can now be made, including the effect on power generation of reflective objects and light reflected from the ground.

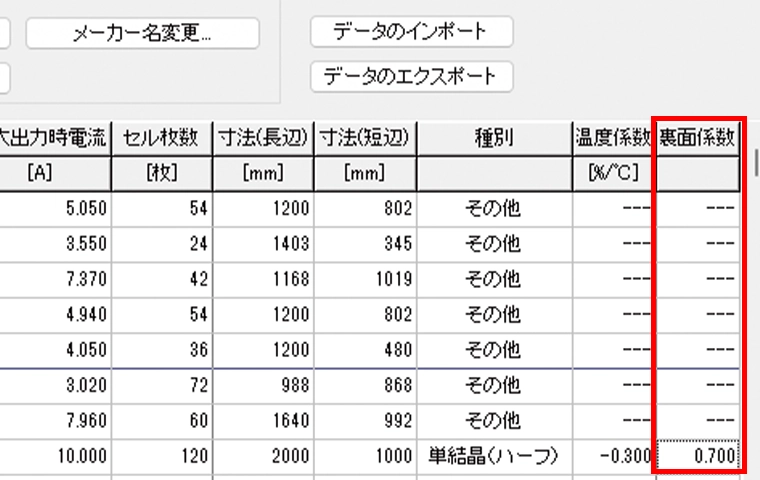

Back Coefficient
Back coefficient can be set arbitrarily,and different settings can be made for each module

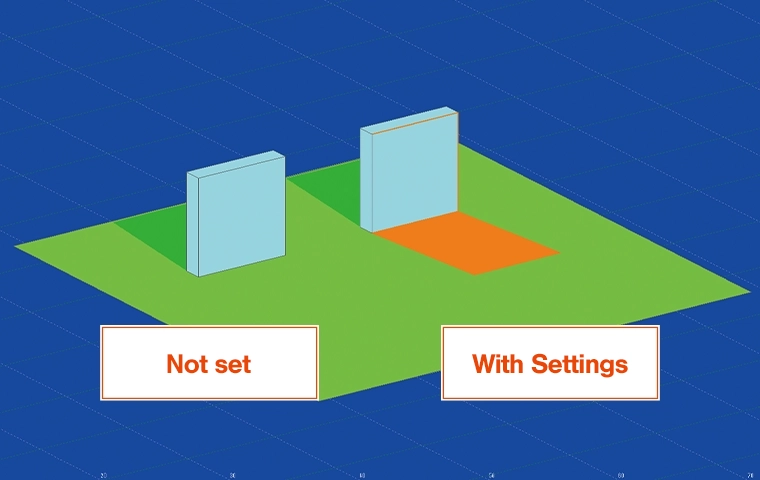

Object reflection settings
Reflection can be set on the surface of an object

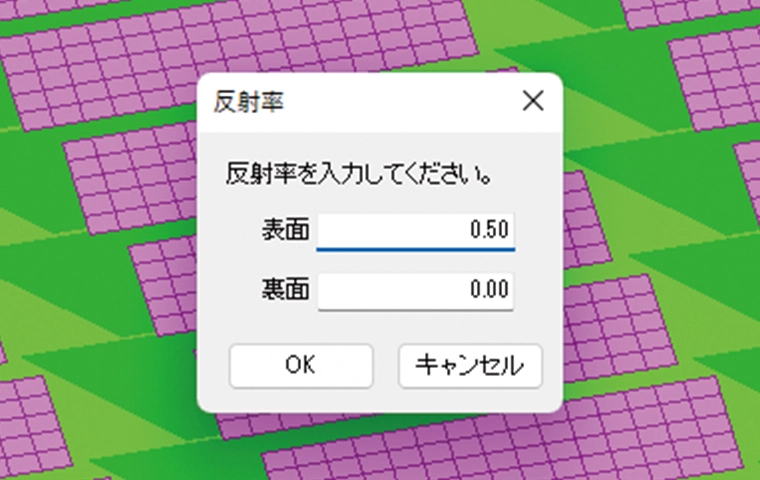

Reflectivity
Different reflectances can be set for different objects, enabling more realistic calculations

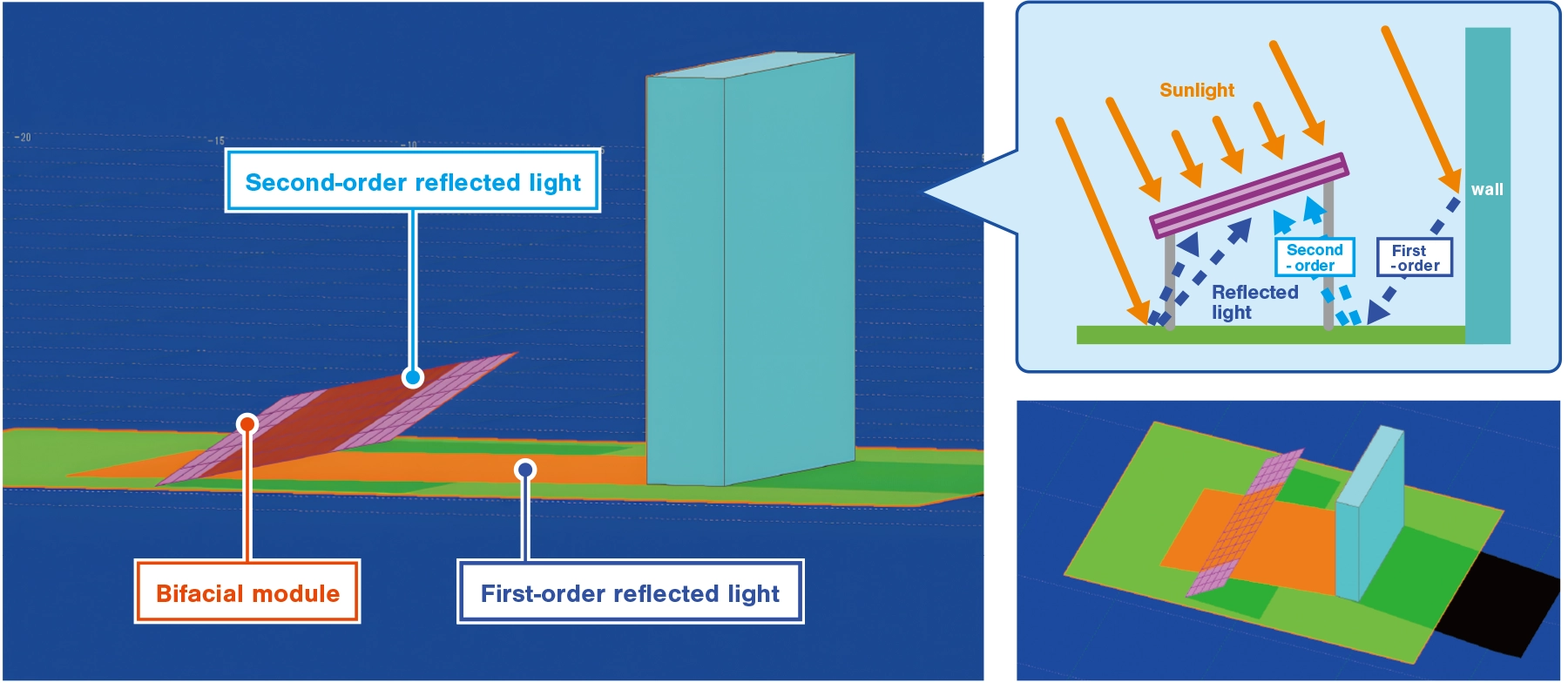

Simulation with up to two levels of reflection
Reproduces multiple reflections of reflected light (specular reflection). Supports up to two levels of reflected light simulation from the ground, walls, etc.
It is possible to simulate light reflecting off a wall, onto the ground (first-order reflected light),and then onto the back of a bifacial module (second-order reflected light).Level 2 reflections are displayed in a darker color.
Usage Examples

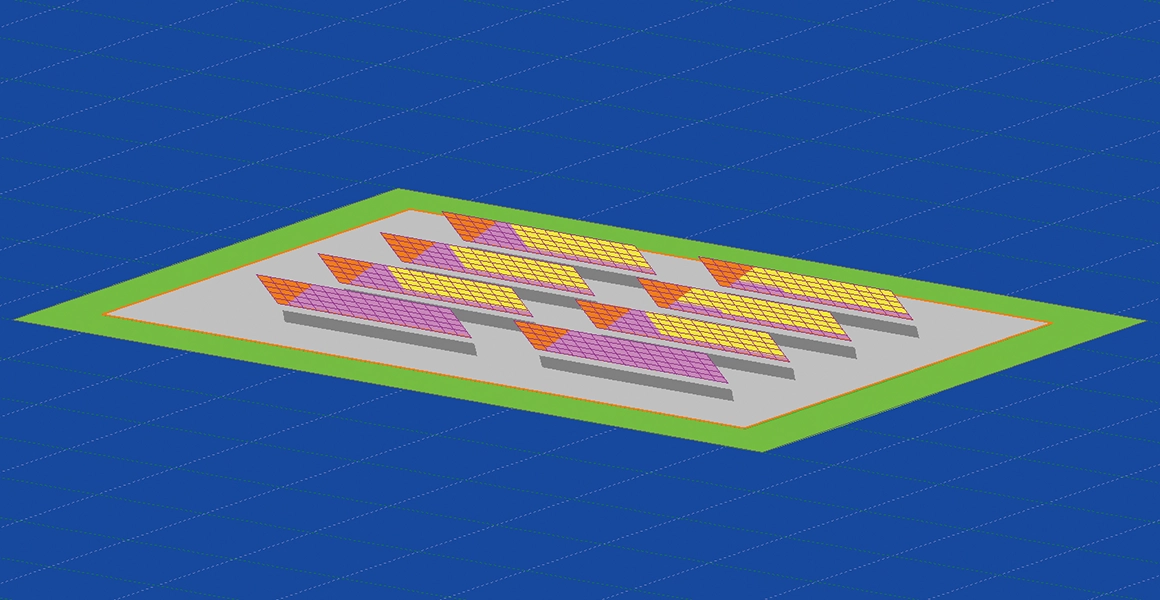

Power generation system using bifacial modules and reflective sheets

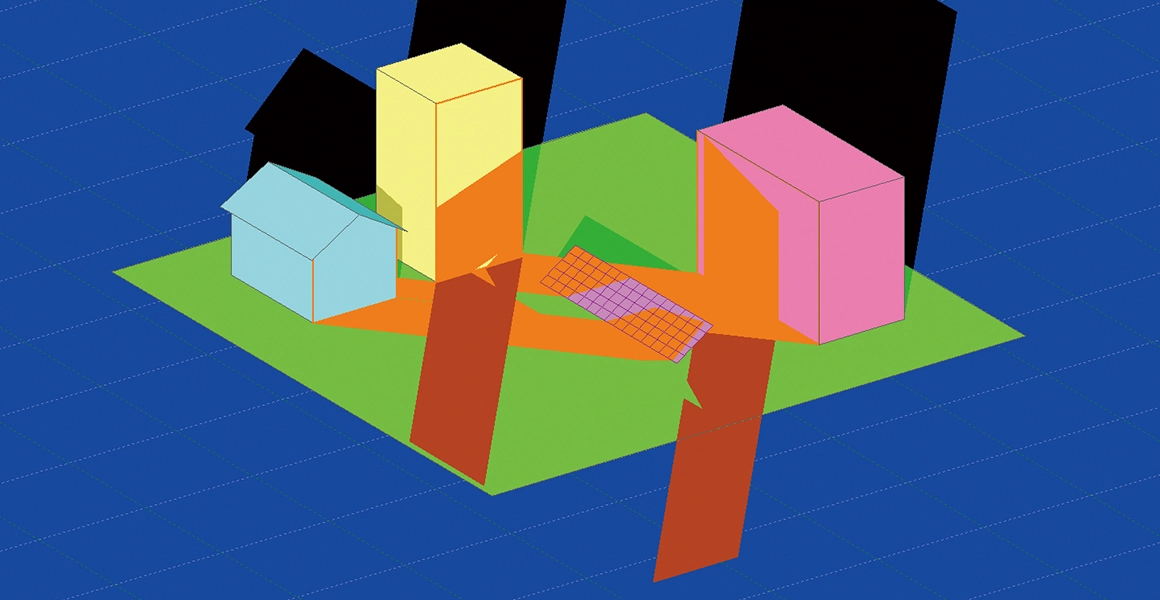

Impact of reflected light from multiple buildings
Optimizer Support
By connecting one unit to one or two modules, it is possible to perform power generation calculations using an "optimizer" that maximizes output efficiency.

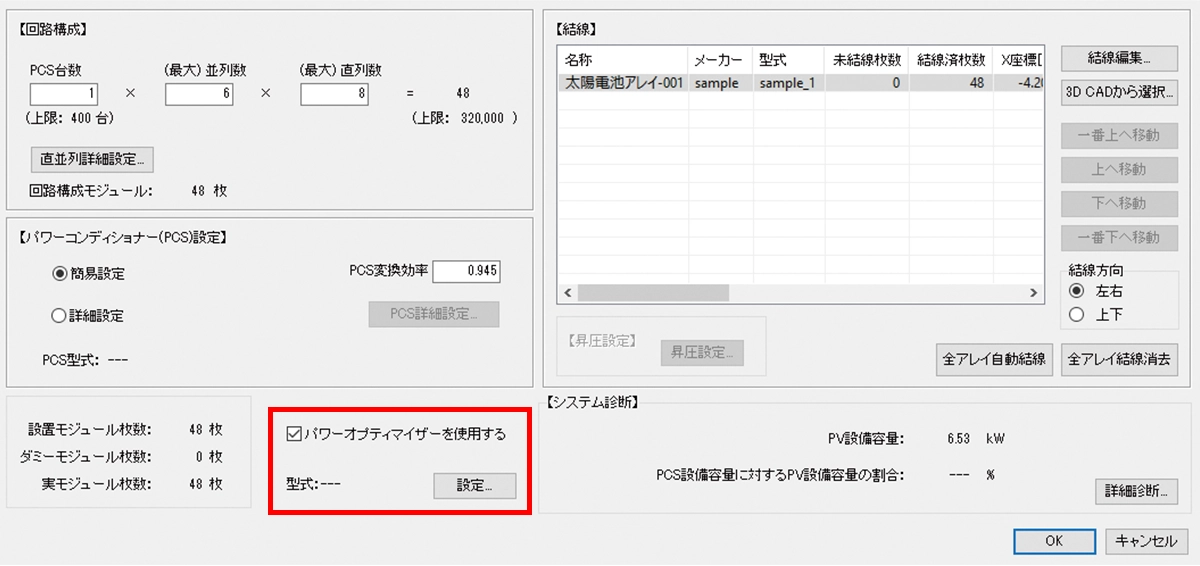

Electric circuit configuration screen
Time-specified discharge function
The prioritized discharge function of the Solar Legato Battery can now be simulated in Solar Pro’s self-consumption control simulation.
Additional Time Units for Reports
15-minute and 30-minute intervals have been added to report aggregation settings. Data can be aggregated in 15, 30, or 60-minute intervals and exported as text or Excel files.
Special Upgrade Offer for Users of Version 4.8 and Earlier!
Customers using versions up to 4.8 can upgrade to Solar Pro 5.0 (Network Authentication) at a special price by returning their Protection Connector (USB key).
* It is also possible to upgrade your existing Protection Connector (USB key) to version 5.0. However, please note that all future versions of Solar Pro will be available only as a Network Authentication.Network Authentication

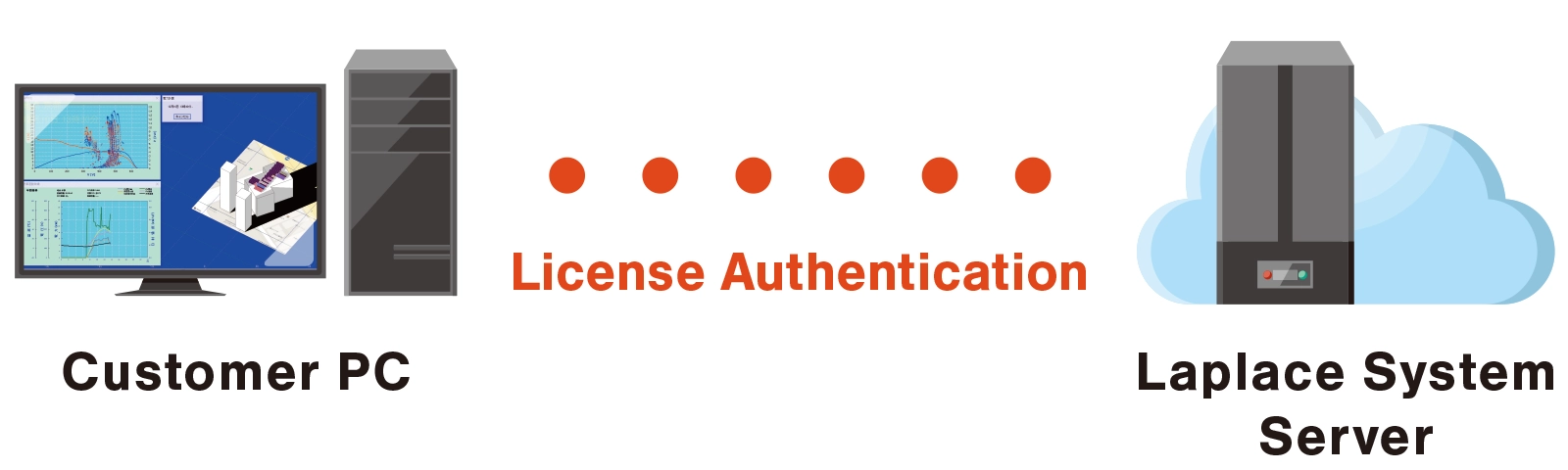

License authentication is performed via the network, eliminating the need for a protection connector (USB key). The license key can be checked from the administrator screen of your Laplace ID.
Download
* The new features of Solar Pro 5.0
are not available in the trial version.
Specifications
| System Requirements | OS : Windows11 CPU : More than Clock 1GHz Memory : More than 512MB Hard Disk : 3GB or more free space (1GB or more for versions prior to 4.8) Screen Resolution : More than 1,366×768 USB Port : USB 1.1 or higher |
|
|---|---|---|
| Meteorological Data | Built-in Data | 1,360 locations overseas, METPV-20, etc. |
| Importable Data | Actual data, meteonorm data (7.1 and earlier), SolarGIS (TMY data), NSRDB (SUNY 10-km grid data), TMY3 data, METPV-11, etc. | |
| Solar cell and circuit configuration | Supported types | Full cell, half cell |
| Single crystal, polycrystalline, amorphous, hybrid, HIT, CIS, CIGS | ||
| Number of inverters | Up to 400 inverters | |
| Number of Modules | Up to 160,000 modules | |
| Max. Series-Parallel Module Number | Limitless within number of modules | |
| Creatable Objects | PV Array (Up to 1,000 modules per array), House, Building, Slope, Array Area, Pyramid, Prism,Truncated Pyramid, Free Form, Tree, Polyhedron | |
