Solar Legato Package List

Each package plan of Solar Legato corresponds to the plan of the same name of the L・eye Photovoltaic power generation package , and for configuration details please refer to each plan of the same name.

*Please consult with your sales representative regarding the availability of on-site adjustment (fees apply).
*High-voltage 2FL, 3FL, and 4FL are equivalent to high-voltage 1FL in the L-eye package. Pyranometers and thermometers are paid options in this plan.
  The first FLIPLINK is included in the package price, and the second is a paid option.
  You can choose from DI (contact/pulse input), DO (contact output), AI (analog input), and ST (solar radiation/temperature).
Inverter rated total capacity
Item
Low voltage
less than 50kW
High voltage1
50kW~
Less than 250kW
High voltage2
250kW~
Less than 500kW
High voltage3
500kW~
Less than 1MW
High voltage4
1MW~
Less than 2MW
Plan name
 Low voltage
Standard		 Low voltage
salt damage		 Low voltage
SPD		 High voltage
FL		 High voltage1
Standard		 High voltage1
salt damage		 High voltage1
SPD		 High voltage1
FL		 High voltage2
Lights		 High voltage2
Standard		 High voltage2Standard
Boxless		 High voltage2
FL		 High voltage3
Standard		 High voltage3Standard
Boxless		 High voltage3
FL		 High voltage4
Standard		 High voltage4Standard
Boxless		 High voltage4
FL
【Components】
Storage board
 Type B Type G Type B2 Type A Type F Type B Type G Type B2 Type A Type F Type B Type C Type E Type F Type C Type E Type F Type C Type E Type F
Communication lines
 ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○
Solar radiation and
temperaturegauge
 △ △ △ △ △ △ △ △ △ △ △ △ △ △ △ △ △ △ △ △
FLIPLINK addition
 - △※１ - △※１ △※１ - △※１ - △※１ △ - △※１ △※１ △ △※１ △※１ △ △※１ △※１ △
Low Voltage
Smart Meter
      △※2      △※2      △※2 - - - - - - - - - - - - - - - - -
High Voltage
Smart Meter
 △ △ △ △ △ △ △ △ △ △ △ △ △ △ △ △ △ △ △ △
【Monitoring screen function】
String measurement and display
 △ △ △ △ △ △ △ △ △ △ △ △ △ △ △ △ △ △ △ △
Camera image
 △ △※3 - △※3 △ △ △※3 - △※4 △ △ △ △※4 △ △ △※4 △ △ △※4 △
Service provision period※5
1 year/10 years
 ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○
Security options
 △※6 △※6 - △※6 △※6 △※6 △※6 - △※6 △ △※6 △※6 △※6※7 △ △※6 △※6※7 △ △※6 △※6※7 △
○ Standard △ Option (paid, optional)

*1: Only FLIPLINK AI (analog input) and ST (solar radiation and temperature input) can be installed.
*2: A dedicated Wi-SUN dongle is added to communicate with the low-voltage smart meter.
*3: Provided in the "Standard Type" retrofit configuration.
*4: If FLIPLINK is added, the "Standard Type" or "Lite Type" retrofit configuration will be provided.
*5: The provision period for ASP services, wireless communication services, and equipment warranty will be the same as the service provision period.
*6: Other contact measurements cannot be made with FLIPLINK DI.
*7: If the camera image option is added, the "Standard Type" will be provided.

Storage board/contents list

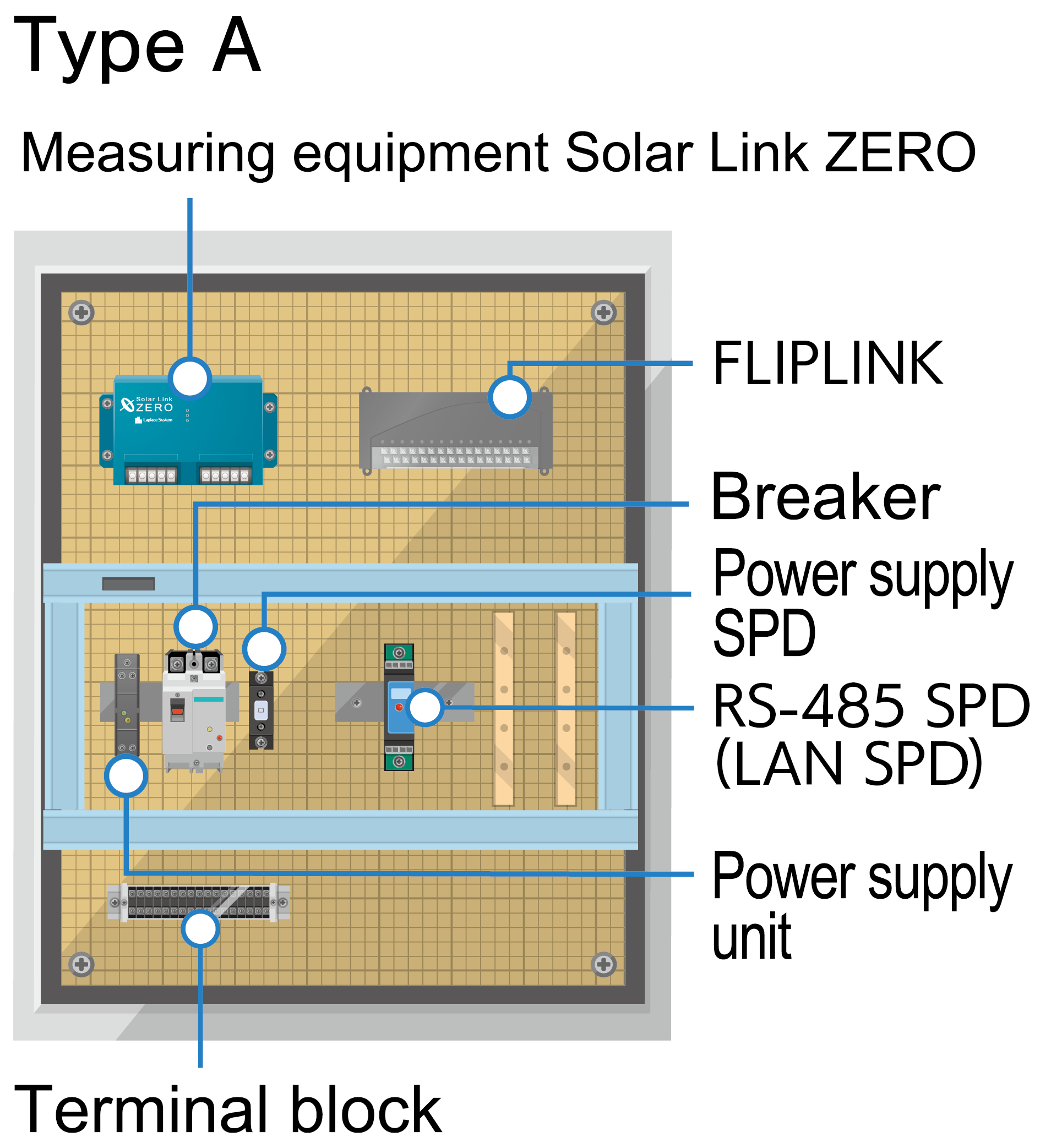

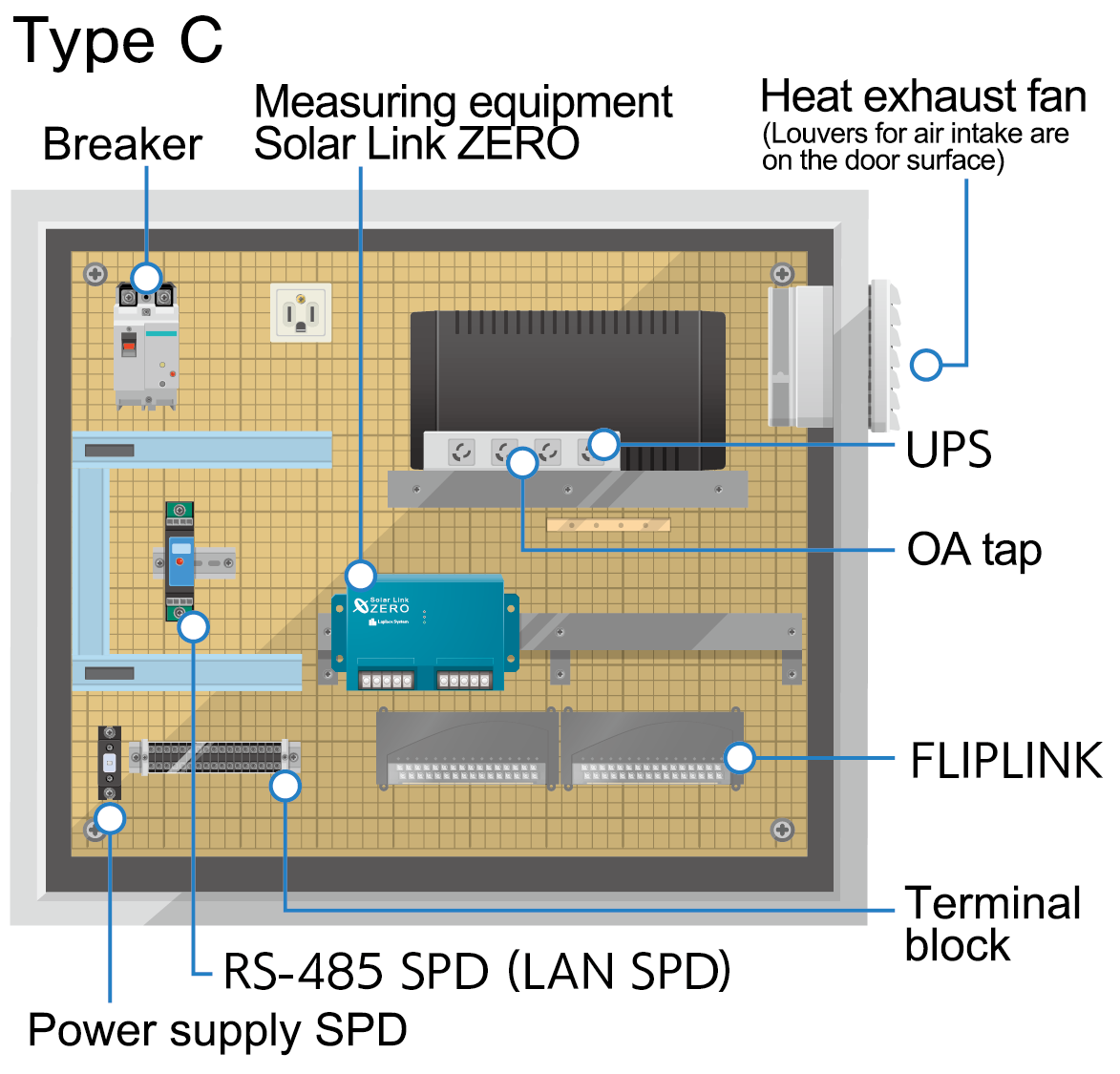

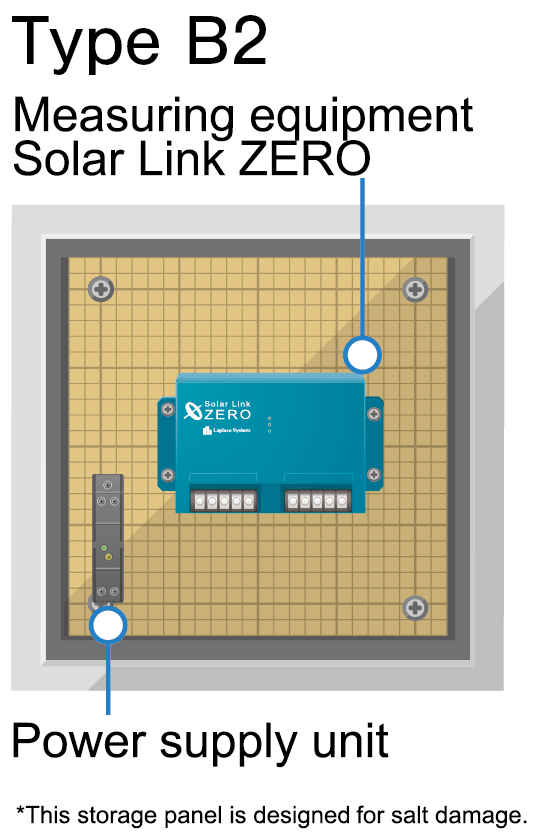

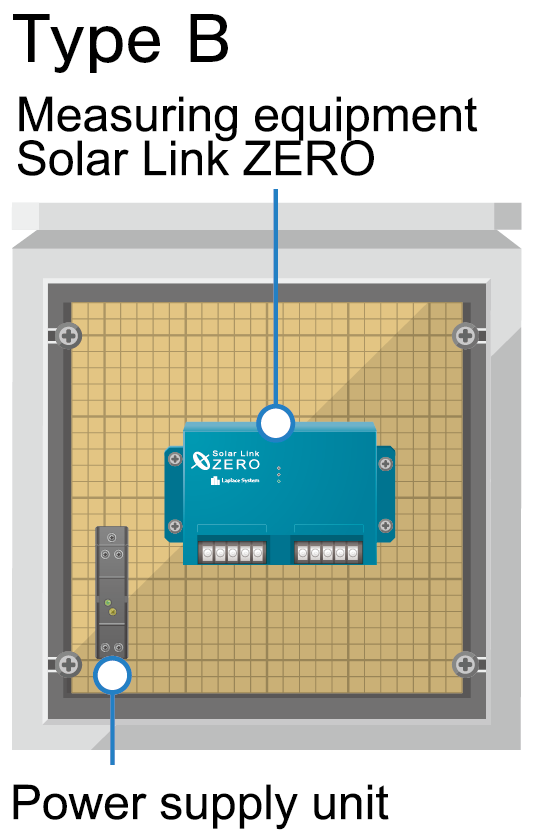

収納盤画像（TypeA） 収納盤画像（TypeB） 収納盤画像（TypeB2） 収納盤画像（TypeC）

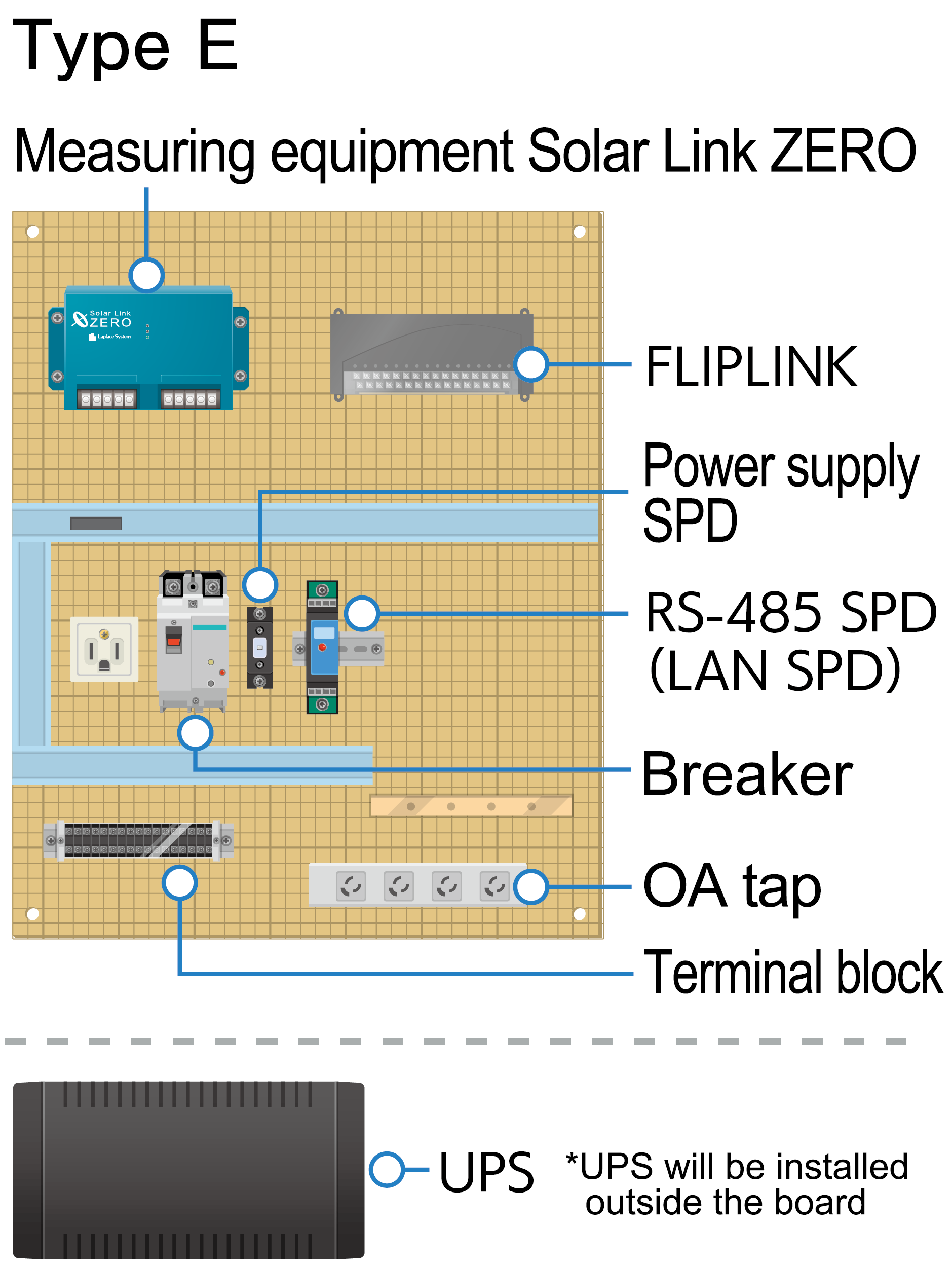

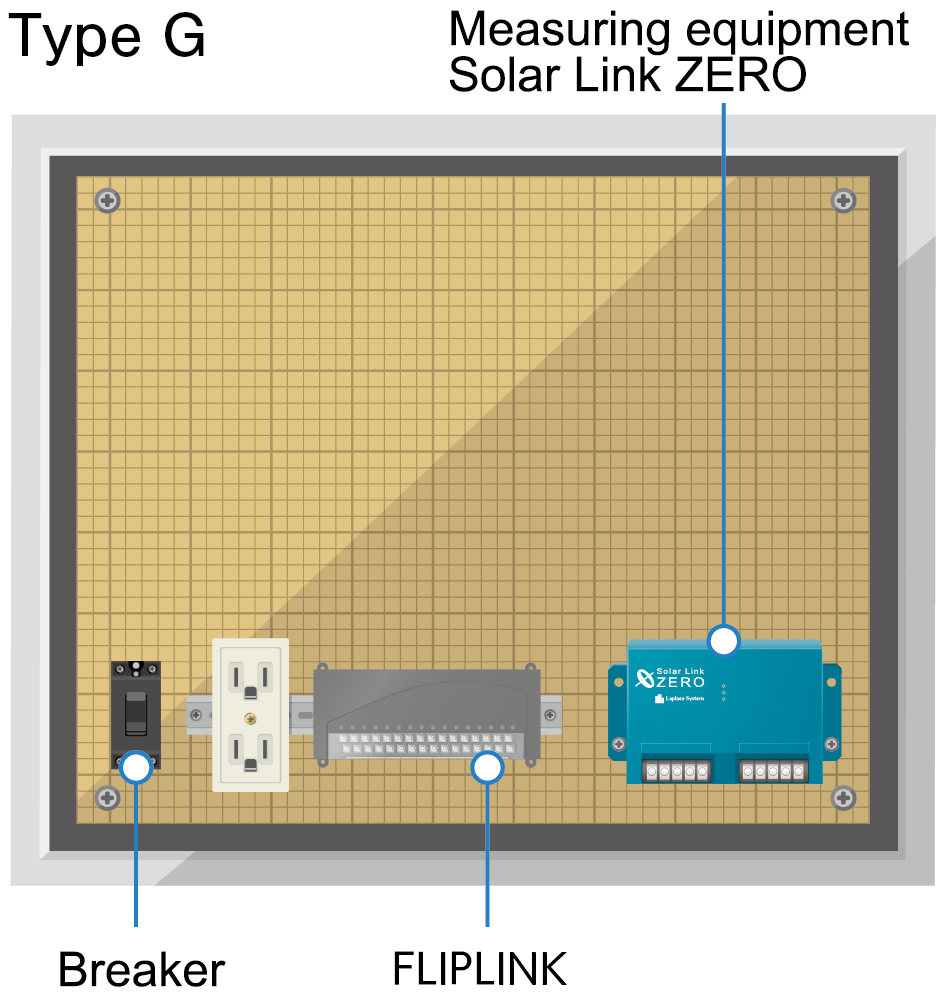

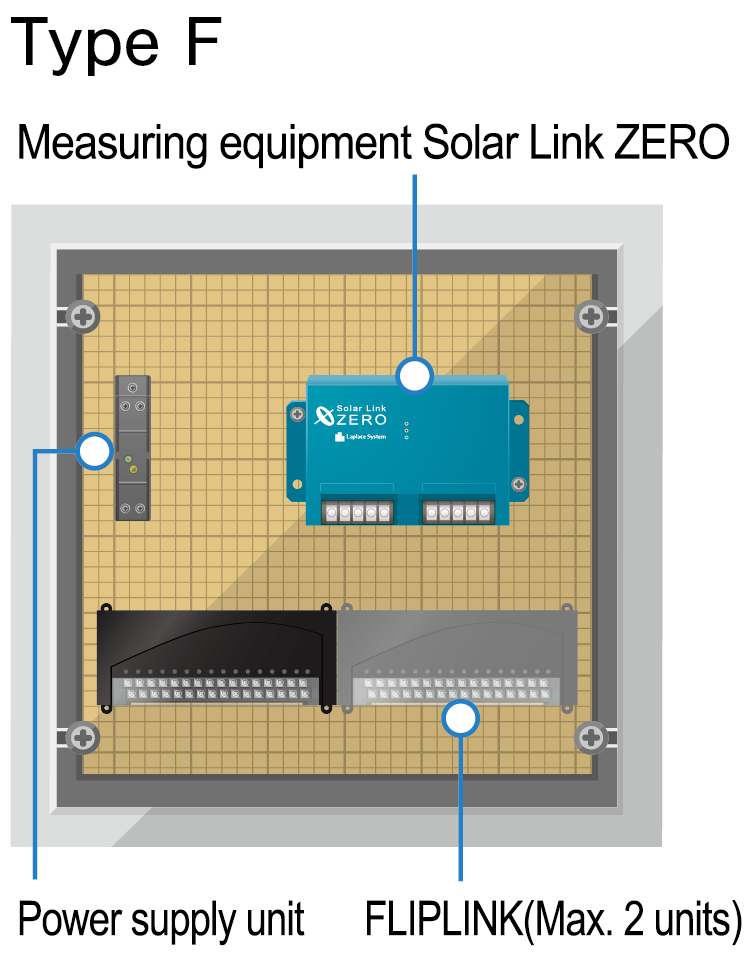

収納盤画像（TypeE） 収納盤画像（TypeF） 収納盤画像（TypeG）
Storage board
power supply
Contents
Power supply unit AC adapter breaker Terminal Blocks UPS OA Tap Power SPD RS-485 SPD/
LAN SPD 		HUB FLIPLINK
Type A 100V/200V ○ - ○ ○ - - ○ ○ - △
Type B
Type B2		 100V/200V ○ - - - - - - - - -
Type C 100V - ○ ○ ○ ○ ○ ○ ○ △ △
Type E 100V - ○ ○ ○ ○ ○ ○ ○ △ △
Type F 100V/200V ○ - - - - - - - - ○※1
Type G 100V - ○ ○ - - △ - - △ △
○ Standard △ Option (paid, optional)
*1: One unit is installed as standard, and additional units can be added as paid options.
*The internal configuration may change without notice.
