Solar Legato
What's New in Solar Legato

Why choose Solar Legato?

Self-consumption support (As of December 2024)
7,060cases


Equipment Warranty
The Solar Link ZERO measurement terminal comes with a warranty of up to the length of the contract year*, and the other equipment comes with a one-year equipment warranty.
*1 year for Solar Legato match/stand alone
※In case of contract extension, warranty will be continued.


Alternate Line Guarantee
In the event that the telecommunication line service at the time of your contract is terminated in the future, we will provide a separate alternative line.

  • Compatible with single-phase and three-phase inverters!
  • 43 supported manufacturers!
    List of supported manufacturers
  • Maximum number of inverters connected: 30!
  • ※May vary by manufacturer and equipment configuration

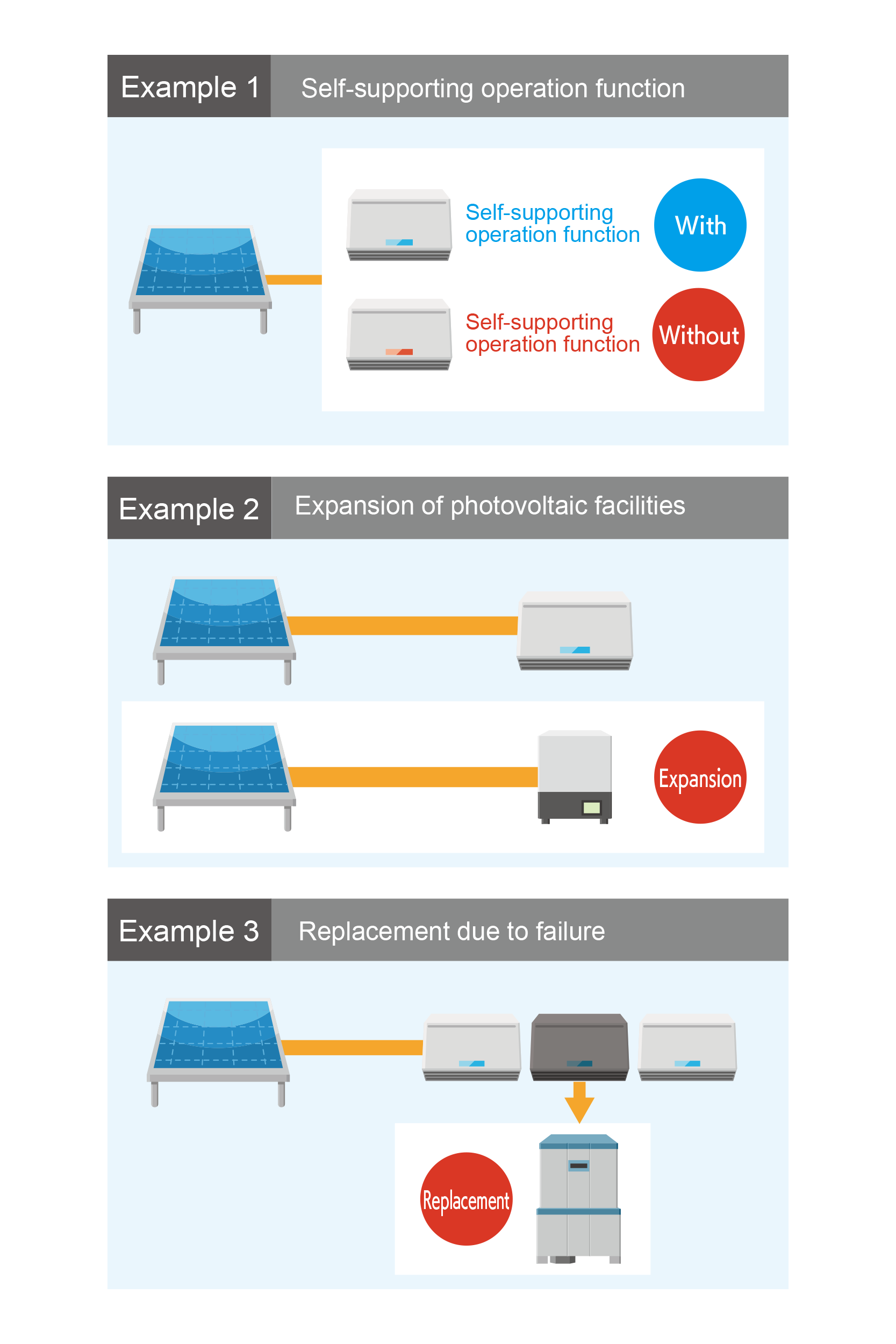

Support for equipment with a mixture of inverter manufacturers and models
Ethernet Inverters for control of mixed power plants

The system can also be installed in power plants with a mixture of inverters of different makes and models, making it possible to offer solutions for power plants with more diverse configurations. For example, we can support power plants that are partially composed of inverters of different makes and models for the purpose of using them as emergency power sources in the event of a disaster, or for the purpose of utilizing subsidies.
※Ethernet inverter heterogeneous support is a chargeable option.
※Depending on the model and combination of inverters, it may not be compatible. Please contact us for details.

In addition, it is possible to support equipment with a mixture of inverter makers and models.
Support for equipment with a mixture of inverter manufacturers and models

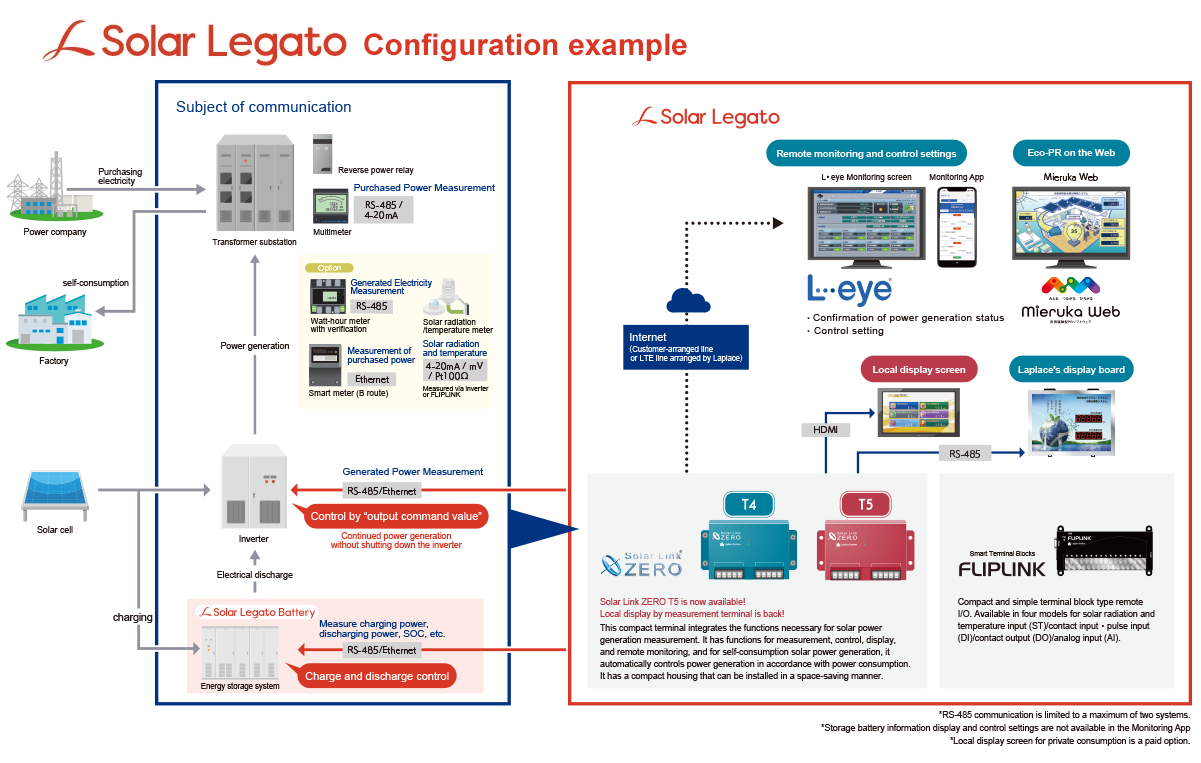

The system enables monitoring of metering values for configurations including smart meters, and can be used for industrial PPA projects. The acquired metering values can be checked on the L・eye monitoring screen and the Solar Link ZERO web application screen, and can also be downloaded as a CSV file. In addition, the system enables the calculation of electricity charges and can be used for billing electricity users.

Schematic diagram of a verified electricity meter/smart meter
Photovoltaic Power Generation Trends Toward In-House Consumption

In response to declining feed-in tariffs and rising industrial electricity prices, more and more facilities and businesses are choosing to consume the solar power they generate rather than sell it to power companies.

Electricity is moving from the age of “selling” to the age of “using.
What are the challenges facing self-consumption power generation?
The inverter stops working

Reverse power flow occurs when there is excessive power generation. If the contract with the power company prohibits reverse power flow, the inverter will shut down.

Task 1
High power generation loss

If the output of the inverter is reduced to match the minimum power consumption to avoid excessive power generation, the power generation system cannot be used to its fullest potential.

Task 2
Solar Legato is the solution
Patented technology maximizes power generation
This system has been patented (Patent No. 6364567) as a power generation control system that automatically controls the output of inverters using output command values calculated by a proprietary formula. The system automatically controls the inverter in accordance with fluctuations in power consumption, reducing the risk of reverse power flow, and also enabling effective use of power generated and maximization of power generated, which was previously excessively suppressed.
Patented

Solar Legato Control Technology

Patented tracking control
Automatic control according to power consumption
When the generated power exceeds the consumed power, the system controls the generated power at a fixed percentage of the consumed power according to arbitrarily set parameters to reduce the occurrence of reverse power flow. Appropriate tracking control ensures that the generated power is used to the maximum extent possible.

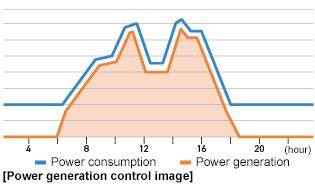

Power generation control image
Maximum output power available = Power consumption (kW) x [Proportionality factor A (%)] - [Fixed constant B (kW)]

Proportionality coefficient A (%)
Percentage of maximum power generation to power consumption

Fixed constant B (kW)
Power range for sudden fluctuations in power consumption or power generation

Power generation control image
【Tracking control image】

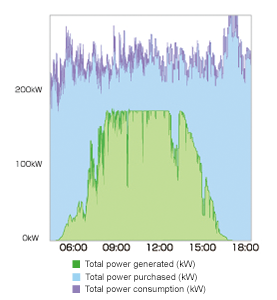

Conventional self-consumption power generation
Conventional self-consumption power generation
The inverter capacity is limited to avoid reverse power flow and therefore cannot generate maximum power.

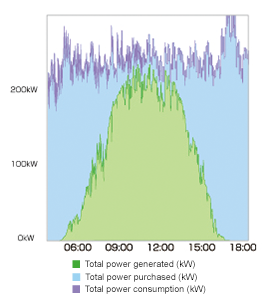

After introduction of Solar Legato
When Solar Legato is installed
Controls following the power consumption and effectively utilizes the power generated for the conventional over-control.



In addition,
a new control method has been introduced!

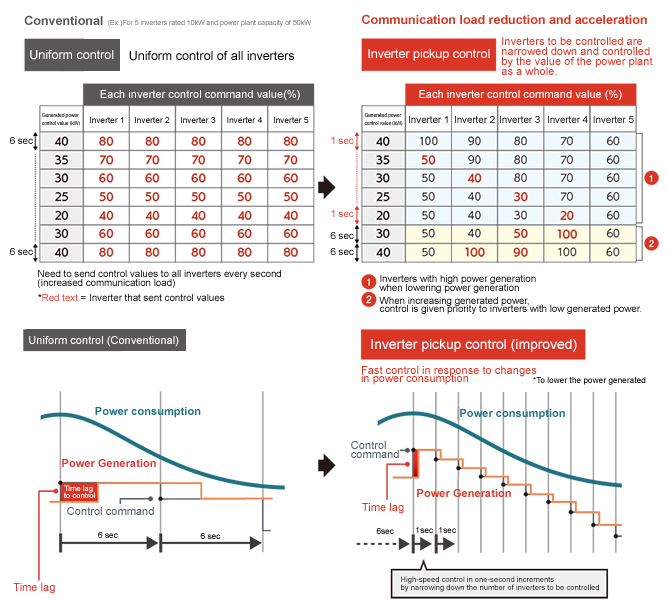

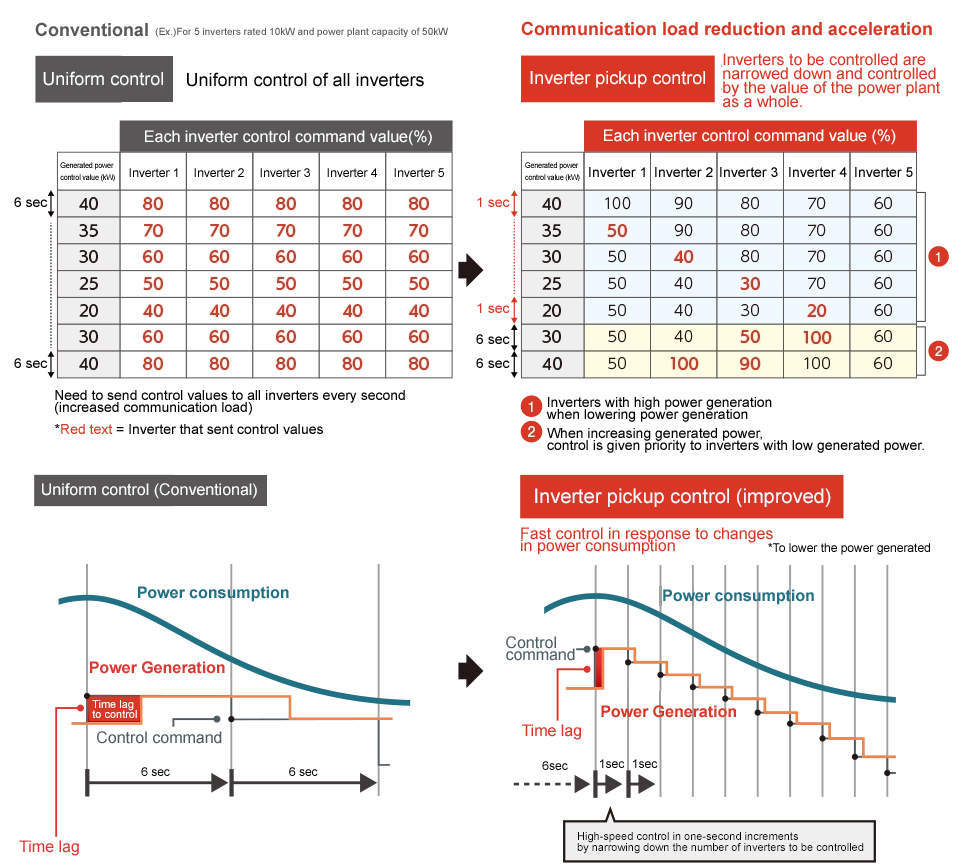

Inverter pickup controlPatent pending  ※Some inverters may not be eligible. Please contact us for details.
The time lag associated with control has been largely eliminated by reducing the communication load through “inverter pickup control,” a unique algorithm that controls by narrowing down the number of inverters, and by modifying the system to measure only power consumption at high speed.In addition, control command values are calculated based on actual power generated. Control commands for inverters are given with more optimal control values.
※Control is performed as needed with timing that matches changes in power consumption.
  Inverter pickup control,
To a control method with high enough speed to inhibit RPR activation.


Function Points



  • L・eye Monitoring Screen
    Power generation status can be checked at once by linking with Remote Monitoring System & Service L・eye.

    ※Solar Legato package, Solar Legato match only.

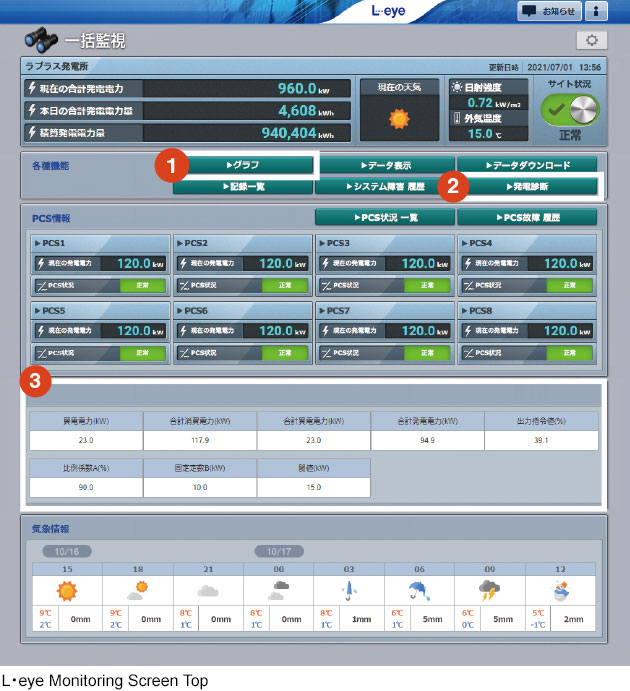

    Monitoring Screen
    Confirmation of detailed power generation status

    Securing Generated ElectricityMaintenance of asset values

    Detailed power generation status, including numerical values for each inverter, can be checked and notifications are sent via e-mail in the event of an abnormality.
    Power generation losses are minimized through precise monitoring and prompt notification in the event of abnormalities, and detailed power generation data can be saved to help prove asset value.

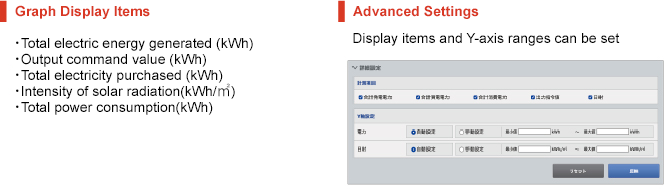

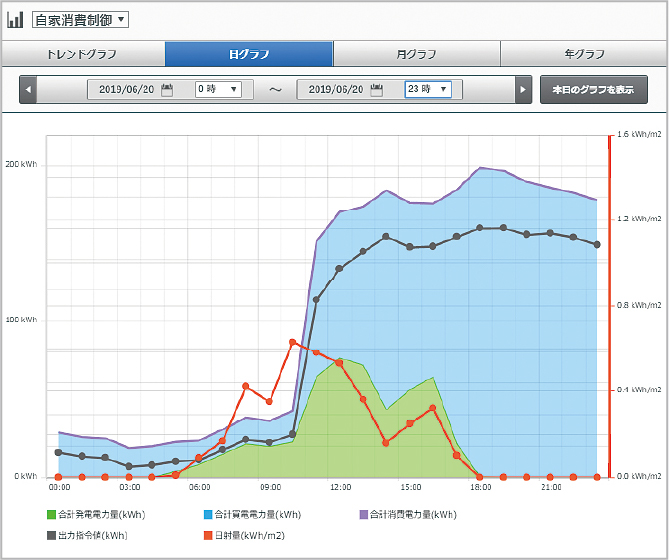

    Self-consumption graph

    L・eye Graphs of self-consumption control can be displayed on the monitoring screen.
    Trend, day, month, and year units can be displayed.

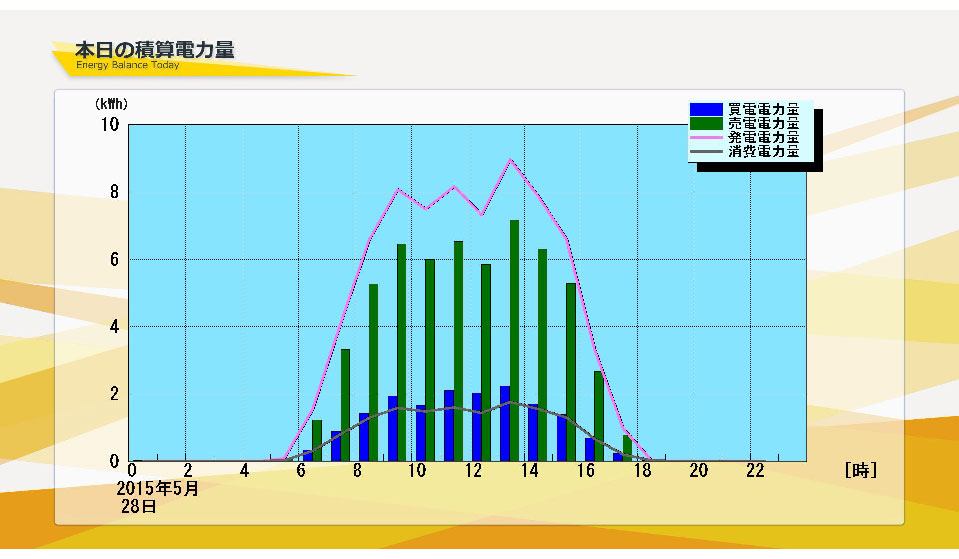

    Self-consumption graph
    Self-consumption graph
    Power Generation Diagnosis
    Aging Analysis

    Calculates system output factor, equipment utilization factor, inverter conversion efficiency, and module conversion efficiency, and displays graphs showing changes in the power plant over time.

    Diagnosis of power outage

    For all inverters in a power plant, power outage is detected when 0 kW is generated for longer than the set time. Diagnostics can also be performed while inverter control is in progress as long as the control rate is above a set minimum value.

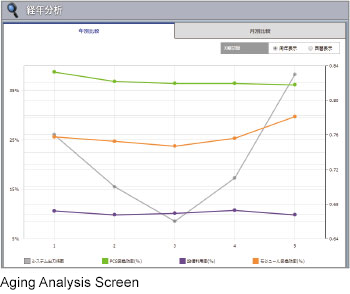

    Aging Analysis Screen

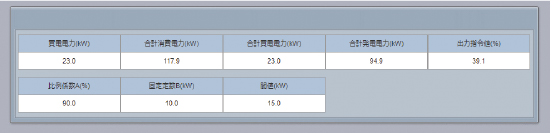

    Transformer substation area

    Obtains and displays numerical control information such as power purchase, power consumption, and control setting values (A value/B value).

    Self-consumption information
  •
  • Remote setting
    Remote control settings on the L-eye Monitoring Screen

    ※Solar Legato package, Solar Legato match only.

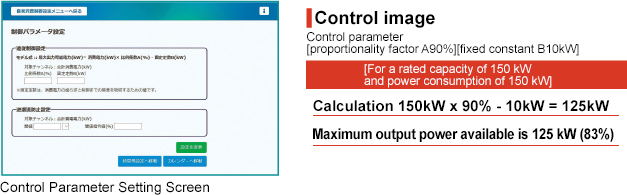

    Control parameter setting

    Set the control settings for power generated relative to power consumed and to prevent RPR* from being activated.

    *RPR (reverse power relay) detects reverse power flow and stops the inverter.

    Control Parameter Setting Screen
    self-consumption control override function

    This can be used to temporarily stop control, for example, to check the operation of an inverter.

    Time of day control setting/control calendar

    The value of the control setting can be set for each hour. It is effective to make settings for lunch breaks and holidays, when demand for electricity decreases. The control calendar allows you to check the status of time-of-day control settings on the calendar and change the settings.

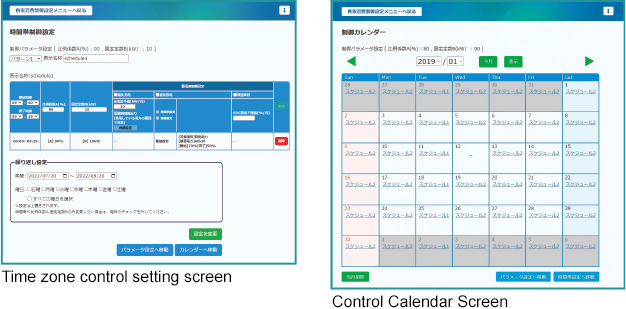

    Time of day control/control calendar
  •
  • PR Contents for Environmental Contribution
    Web-based PR for self-consumption solar power generation

    ※Solar Legato package, Solar Legato match only.

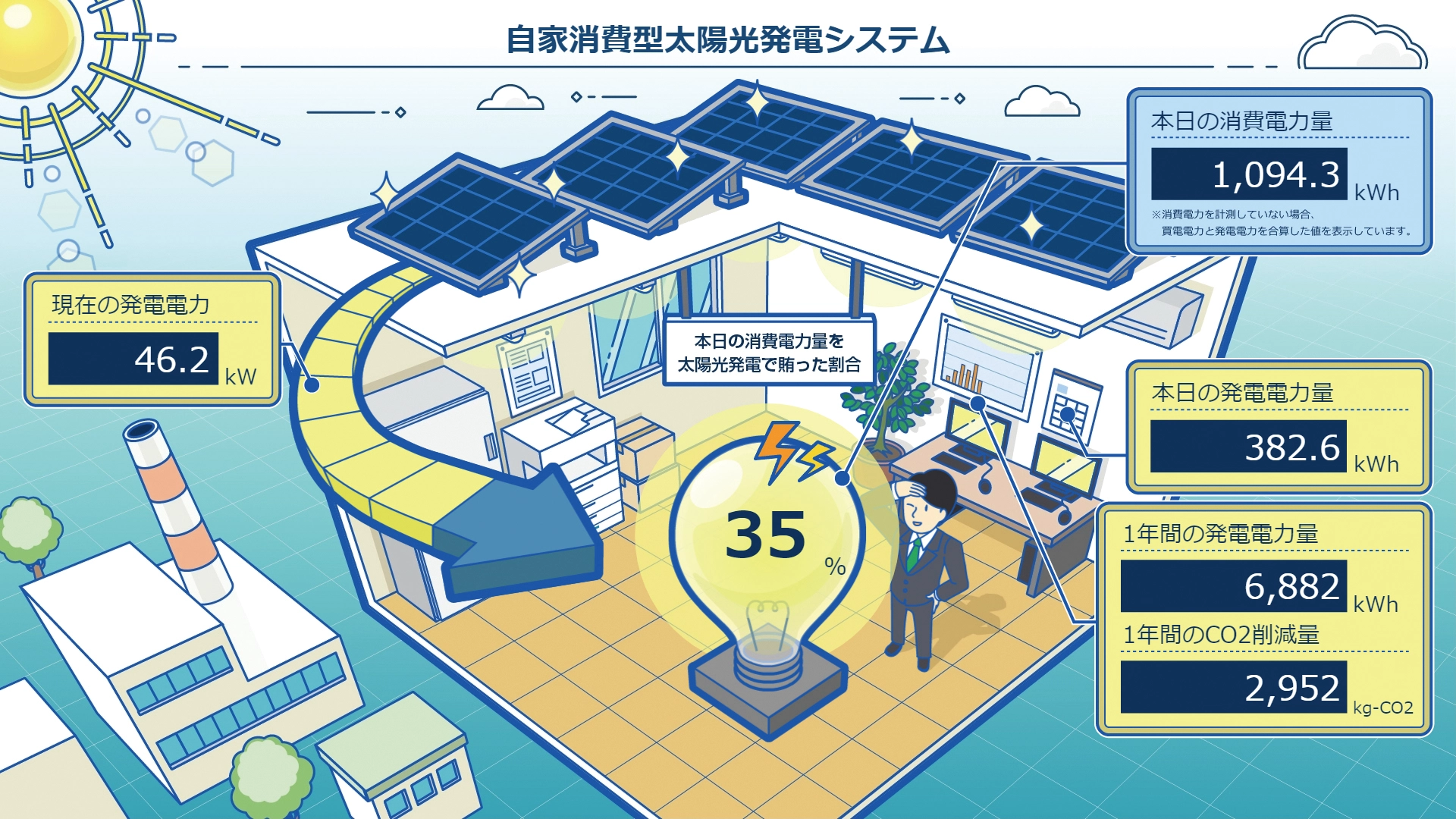

    Mieruka Web

    By using Mieruka Web, our measurement-linked PR software, you can link your environmental PR to L・eye's measurement information. The design can be customized (for a fee) to meet your needs.

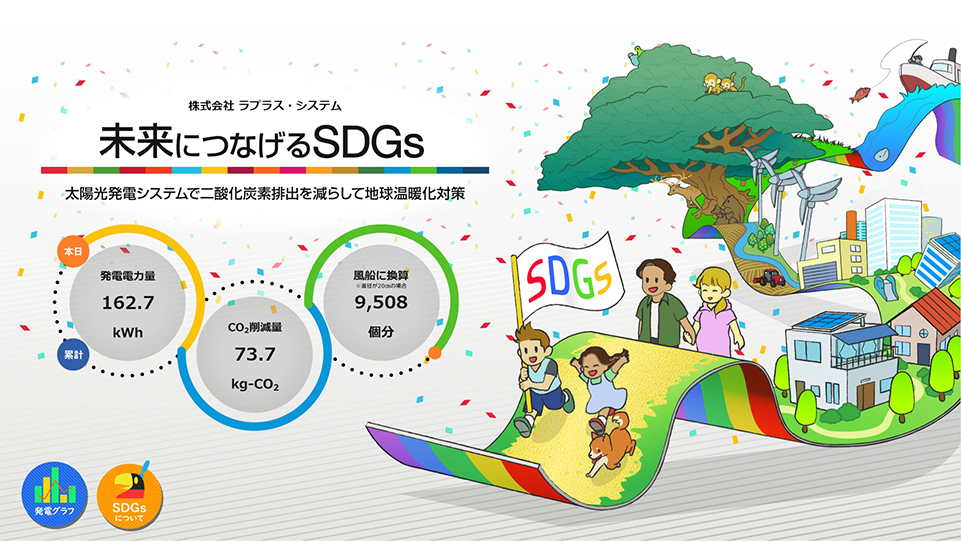

    SDGs Content

    An overview of the SDGs and the 17 goals are explained with pop-up animations. The amount of electricity generated by renewable energy systems is displayed in terms of CO2 reductions to promote the contribution to carbon neutrality, which is considered a priority issue for Japan in the SDGs efforts.

    SDGs Screen

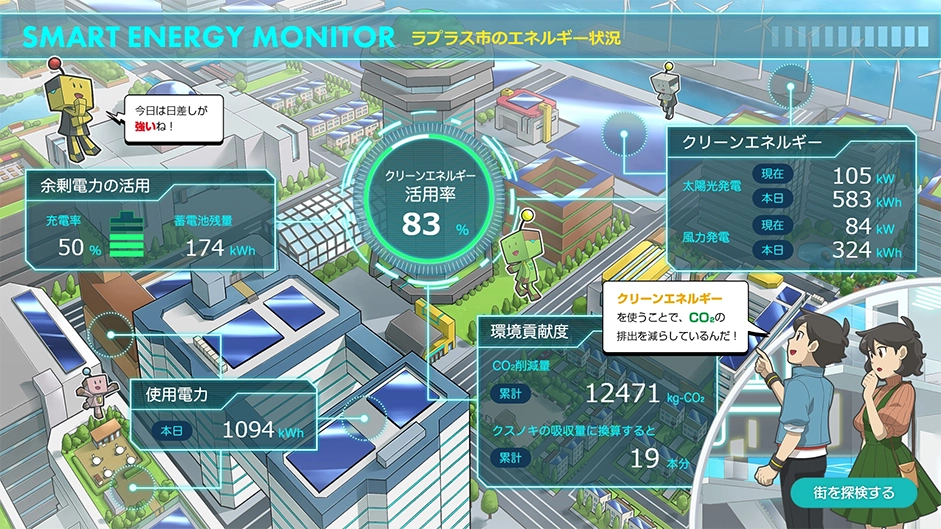

    Smart City Content

    Animated overview of smart cities and their technologies. Visualizes and promotes the use of clean energy to support smart cities.

    Smart City Screen
    Decarbonized Content

    Explains the current state of environmental change and decarbonization in the style of a news program. It introduces institutions and various technologies related to decarbonization.

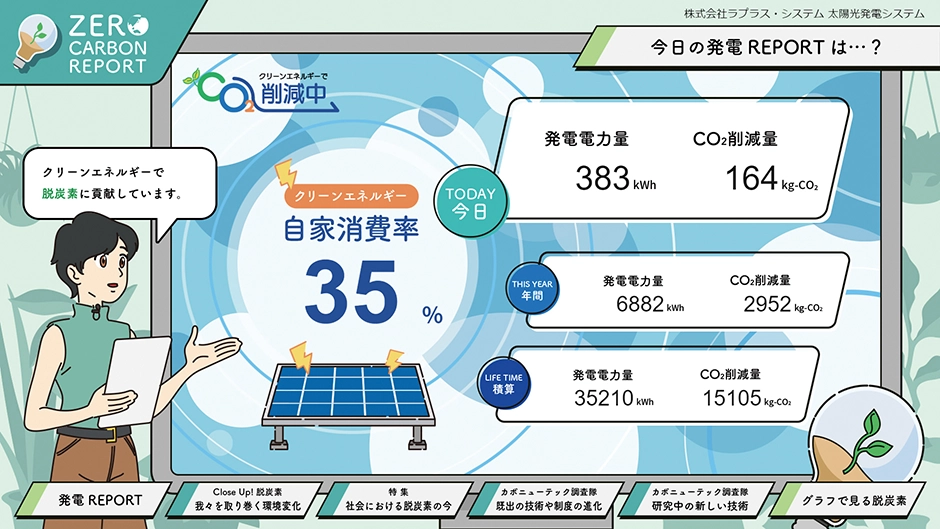

    Decarbonization Screen
    Learn more about Mieruka Web

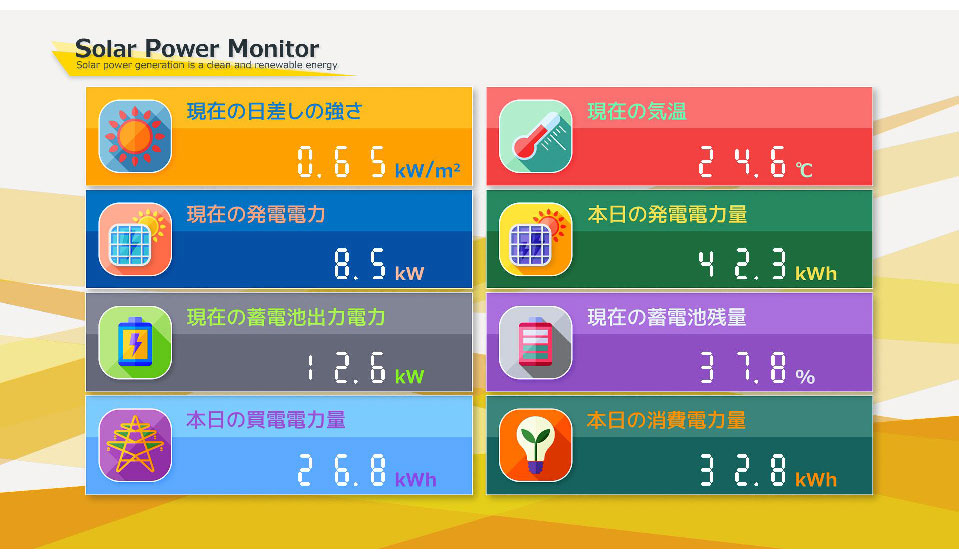

    Local display screen for self-consumption

    The Solar Link ZERO T5's HDMI output enables direct connection to a display for on-site display with less effort and cost (onerous). Enables on-site display of self-consumption items and storage battery information according to Solar Legato's measurements.

    ※Displayable items: Displayable items: power generated, amount of power generated, amount of power purchased, amount of power consumed, storage battery output power, remaining storage battery power, sunlight intensity, temperature

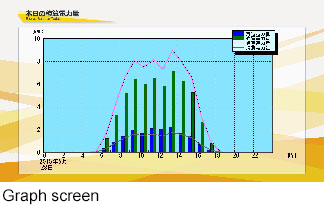

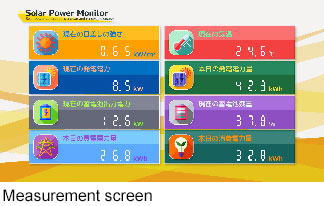

    Measurement screen Graph screen

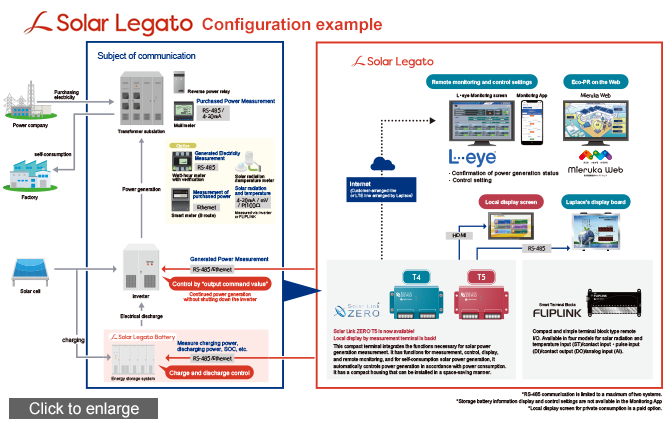

Specification

Solar Legato Package
Solar Legato Package
This package includes an automatic Output Curtailment system for self-consumption solar power generation and a remote monitoring system.
View package list
Solar Legato match
We propose the best system that matches your objectives and conditions when a package cannot.
Smart terminal block “FLIPLINK” can be mounted
Compact and simple terminal block type remote I/O, based on the concept of integrating a measuring instrument and a terminal block. 4 models are available for solar radiation and air temperature input (ST), contact input and pulse input (DI), contact output (DO), and analog input (AI).
FLIPLINK

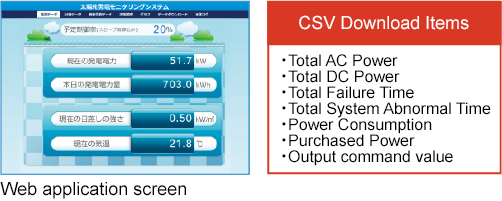

Solar Legato stand alone
Local operation is possible without the need for an Internet connection. A web application on the local network can be used to check power generation status and download data in CSV format.
Solar Legato stand alone
Self-consumption control Supported manufacturers
Yingli Green Energy Japan WEST HOLDINGS XSOL SMA Japan Canadian Solar Japan
Qcells clean venture 21 Sungrow Japan SANSHA ELECTRIC MANUFACTURING Suntech Power Japan
SANYO DENKI GS Yuasa(GS YourSignfra Systems(formerly Sanken Electric) incl. JA SOLAR JAPAN Shindengen Electric Manufacturing SolarEdge Technologies JAPAN
SOLAR FRONTIER Diamond&Zebra Electric DMM.com TMEIC DELTA ELECTRONICS (JAPAN)
Trina Solar Japan Nissin Electric Japan Energy Holdings Next Energy & Resources NEMY
Panasonic SANYO Electric Hitachi Industrial Equipment Systems Huawei Technologies Japan fujisaki electric FUJI ELECTRIC
MARICI Japan
(Former:ABB)
Mitsubishi Electric MEIDENSHA YASKAWA Electric
Storage battery control Supported manufacturers (including planned)
EDISON POWER CONNEXX SYSTEMS GS Yuasa(GS YourSignfra Systems (formerly Sanken Electric) incl.) Sumitomo Electric Industries Chint
Tesla DELTA ELECTRONICS(JAPAN) Toshiba IT & Control Systems NITTO KOGYO Huawei Japan
Murata Manufacturing MEIDENSHA YAMABISHI

※Please contact us for the model number.

Specification Details
installation requirement

・Reverse power relay shall be installed.
・The inverter must be of a manufacturer and model compatible with Solar Legato. ※1
・Ability to set a slope time suitable for self-consumption control.
・The number of inverters is limited to the number that can be measured by a single Solar Link ZERO unit.
・Either power consumption, purchased power, or both must be measured. ※2
・Control using stop/standby bits may be necessary when equipment capacity is large and consumption is low. ※3

※1.Since there is a time lag in control, the longer the measurement interval of the inverter, the less it can be properly controlled.
※2.Must be an instantaneous value measured by analog or RS-485 (multimeter, etc.). Conversion from pulses is not possible.
  In addition, if the measurement of purchased power continues to fail, power generation will stop.
  Please consider measurement with a multimeter, etc., taking into account the results of prior communication checks, etc.
※3.To prevent reverse power flow from occurring due to sudden power generation due to large fluctuations in power generation caused by solar radiation fluctuations (especially when the capacity per unit is large).

Operating environment ※We do not guarantee the operation of the site in other environments.
■Remote monitoring PC
OS Windows 11 ( 32bit / 64bit )
Browser Google Chrome / Mozilla Firefox / Microsoft Edge (All of these are the latest versions)
■PC for control setting
・A premises network to connect a PC for control settings is required (direct connection to the measuring machine is also acceptable).
・A separate Internet subscription is required to use the remote monitoring system.

Download

For those who want to experience the benefits of installing Solar Legato
You can simulate the installation with Solar Pro.
solar pro

Download a 30-day trial of Solar Pro here.
