Our security system protects solar power plants by detecting intrusions and sending email alerts, while deterring intruders with light and sound.

When the photosensor detects an intrusion, a revolving light with siren and LED lights are used to deter the intruder. Additionally, abnormal events are reported via email. The history of detected anomalies, such as intrusions, can be checked on the L・eye monitoring screen.


Here are the target products

Theft Damage at Solar Power Plants Rapidly Increasing

The theft of metal items, such as copper wire cables, at solar power facilities has seen a sharp rise, with the damage in fiscal year 2023 reaching the highest level ever recorded. Authorities, including police across various prefectures and the Japan Photovoltaic Energy Association (JPEA), have issued alerts regarding the growing number of theft incidents at solar power facilities. In Ibaraki Prefecture, which has the highest number of metal thefts nationwide, approximately 58% of the metal thefts that occurred in fiscal year 2023 took place at solar power facilities. Once a theft occurs, it not only causes power generation to halt but also requires a significant amount of time and cost for recovery, potentially having a major impact on revenue.

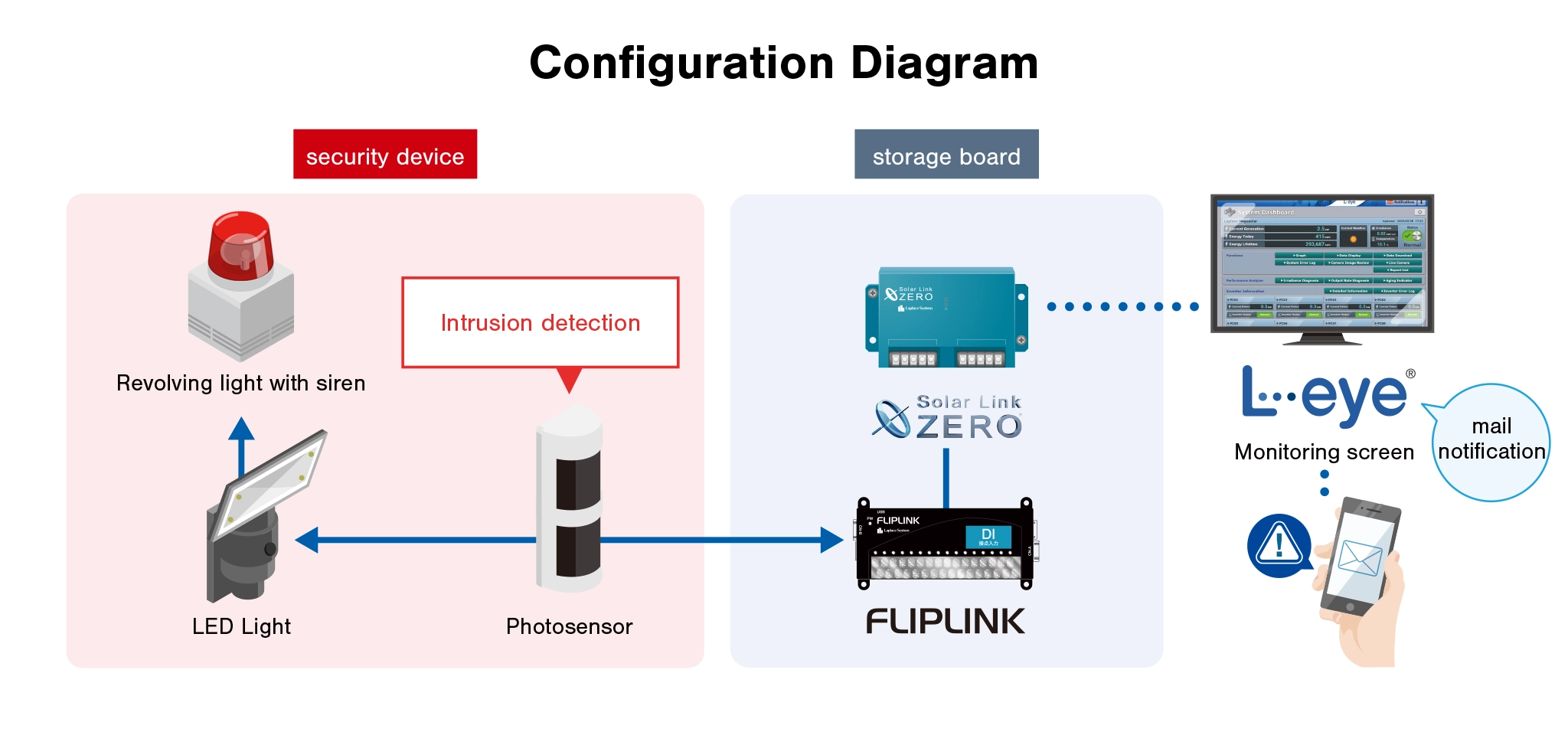

When anomalies such as intrusions are detected, email alerts are sent to the registered destinations. The history of detected anomalies can be checked on the L・eye monitoring screen.

Provision Method

Retrofit Available

Customers already using the L・eye or Solar Legato package can also install the system as a retrofit. Multiple units can be installed as well. We also offer the option to add security equipment or LED lights only.

*For retrofitting, the FL Existing Type and FL Additional Type require software updates.
*The addition of the security system to the salt damage package is not possible.

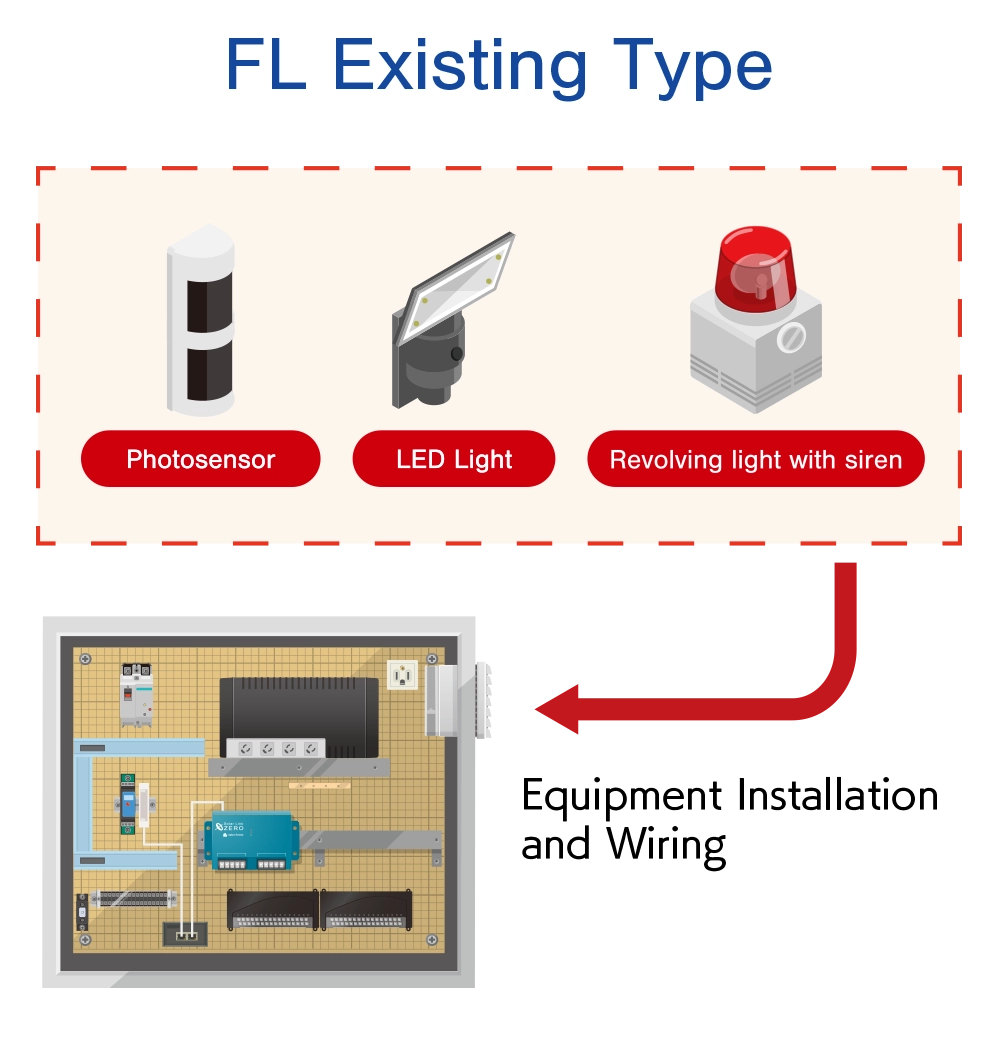

Providing Security Equipment Only

When the FLIPLINK DI is mounted in the package.

Configuration Example

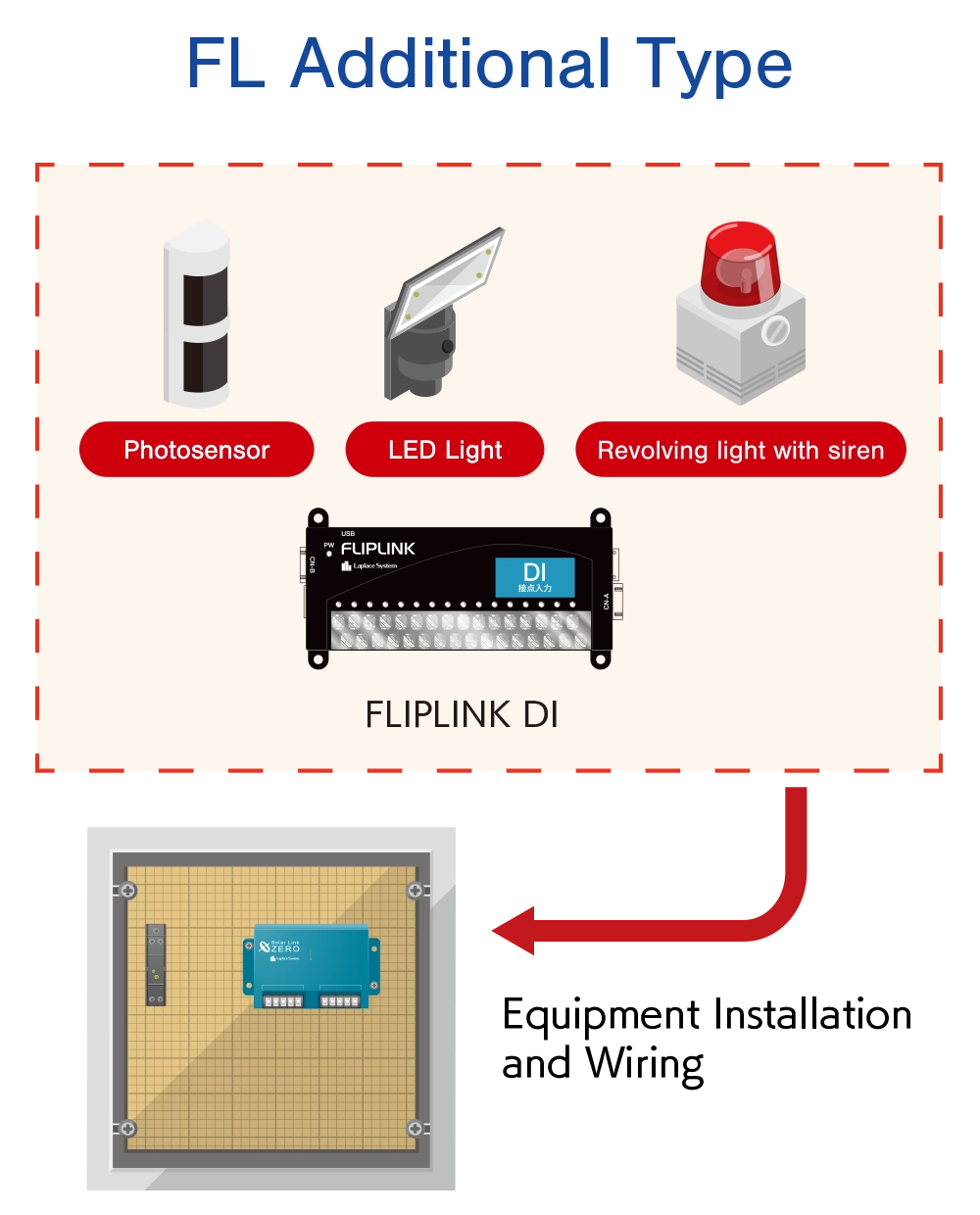

Providing Security Equipment and FLIPLINK DI

When there is space available in the storage panel to add the FLIPLINK DI.

Configuration Example

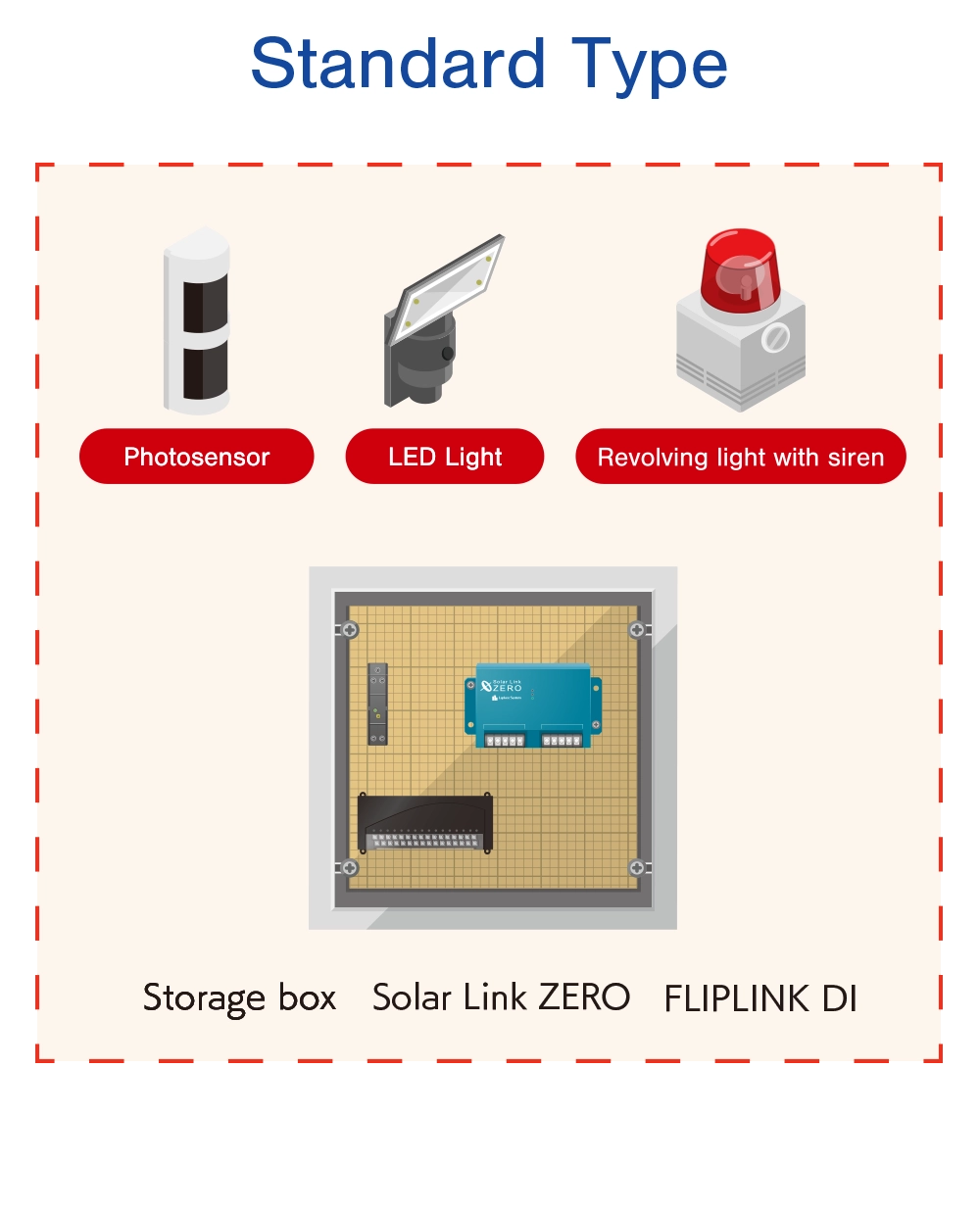

Providing All Equipment and Lines Together

Available for addition to all packages.

Configuration Example

Specifications

Photosensor

Model: MS-12TA-N
Protection Rating: Equivalent to IP54
Detection Method: Passive Infrared (Twin Lens + Counting Processing)
Detection Area:
・Opening Angle: 90°
・Maximum Range: 12m
Operation Mode: Day/Night Detection
Power Voltage: AC100V ±10V

LED Light

Model: SL-34
Protection Rating: IP55
Adjustment Functions:
・Lighting Mode (Steady / Flashing)
・Operation Mode (Day/Night Detection)
・Brightness Setting
Illumination Brightness: 4000lm
Power Voltage:AC100V±10%

Revolving light with siren

Model: RFT-100E-R
Protection Rating: IP54 (Mounting in the correct direction only)
Sound Pressure Level: Maximum 90dB or more
Rated Voltage: AC100V ±10%

〇Service Provision Period

The service provision period is based on the package's service period or the ASP contract period. If either period is extended, there will be an additional fee for extending the security system service for the "Standard Type."

〇Equipment Warranty

All equipment comes with a 1-year warranty. Additionally, for those using the "Standard Type," an equipment warranty option for the duration of the contract is available for Solar Link ZERO.

〇Operating Temperature Range: -10 to 40°C

〇Surrounding Humidity: 85% or less (non-condensing)

〇Option to Select LED Light Availability: Available for selection.

Additional Installation of Camera Image Option Available
Webカメラ

Protection Rating: IP66
Impact Resistance: IK10
Resolution: 640×360 pixels
Image Capture: Once every 15 minutes

Important Notes

  • This product and service do not completely prevent damage caused by crimes such as theft. To achieve more effective security, it is important to combine multiple countermeasures.
  • It cannot be used in salt damage areas.
  • A contract for the remote monitoring system service, L・eye monitoring screen, is required.
  • Customers using plans other than the "FL" or "Power receiving and transforming" plans in the package cannot measure contact signals other than the motion sensor of the security system. If you wish to measure other contact signals, please apply for the "FL" or "Power receiving and transforming" plan.
    ※The "Low Voltage FL" plan in the Solar Legato package is excluded.
  • If you want to incorporate the camera image option into the "Standard Boxless" plan for High Voltage 2-4, the "FL Additional Type" installation cannot be used.
