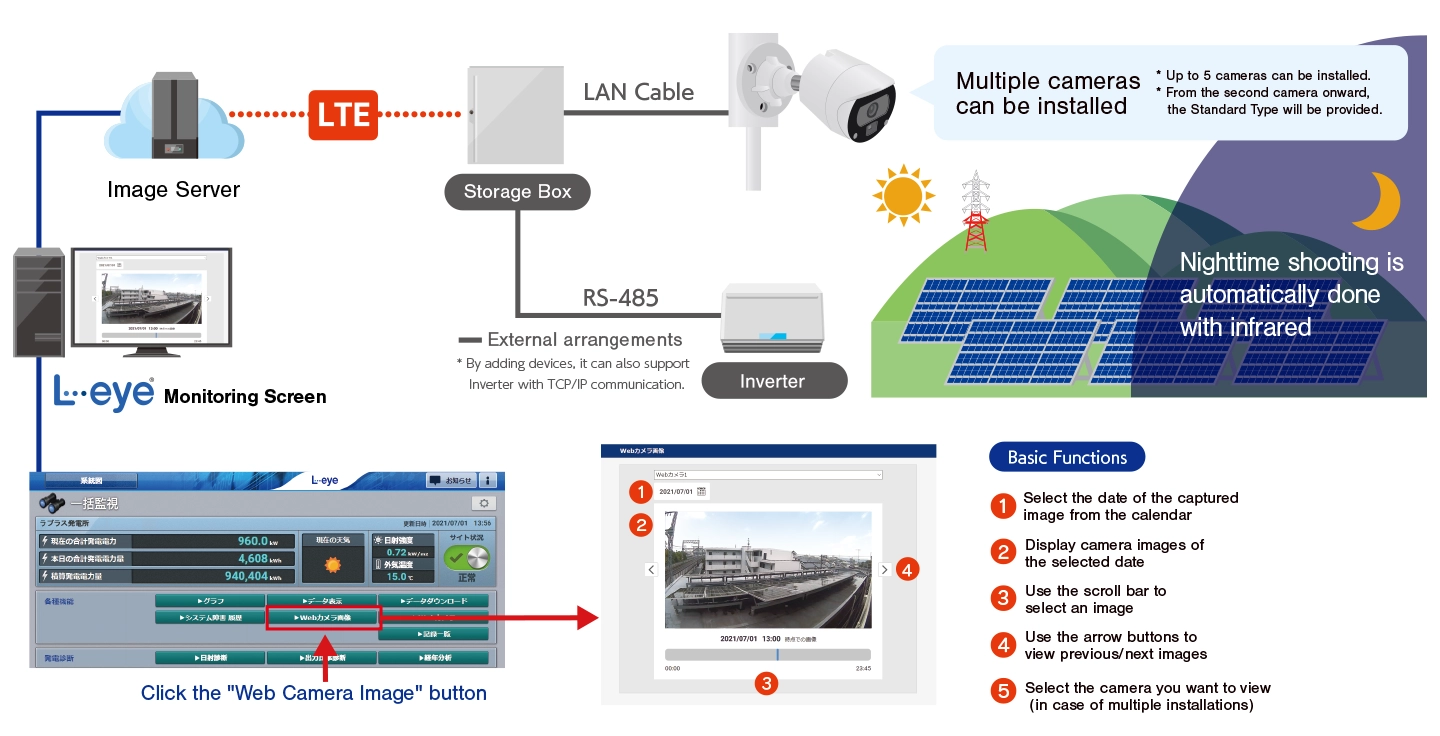

Comprehensive Remote Monitoring with Measurement Data and On-Site Images
In addition to high-performance monitoring with measurement data, the Camera Image Option allows you to check on-site images.Images captured by the web camera can be viewed for up to 31 days!
Low Cost

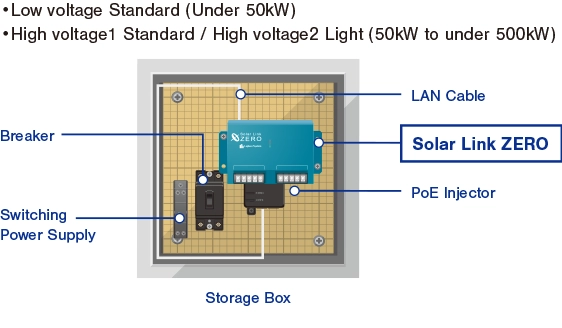

By integrating measurement and communication into a single Solar Link ZERO, we have achieved an overwhelmingly low price with a simple and optimized system configuration.
Reduced Line Costs
Single Device Solution
With Solar Link ZERO handling both measurement and communication, line costs are minimized.
Reduced Equipment Costs
Simplified Configuration
By optimizing the camera selection, we reduce equipment costs with the most efficient and minimal setup.
Reduced Development Costs
Accumulated Technology
By leveraging our expertise, including server technology for handling large volumes of data, we have successfully minimized development costs.
Reduced Assembly Costs
In-House Integrated System
With an optimized enclosure configuration that reduces workload and dedicated staff handling assembly, we have effectively lowered assembly costs.
Camera
Enhanced functionality with a new camera upgrade, providing comprehensive remote monitoring.
Wide-angle Capture
Night Vision
Waterproof and Dustproof
Shock Resistant

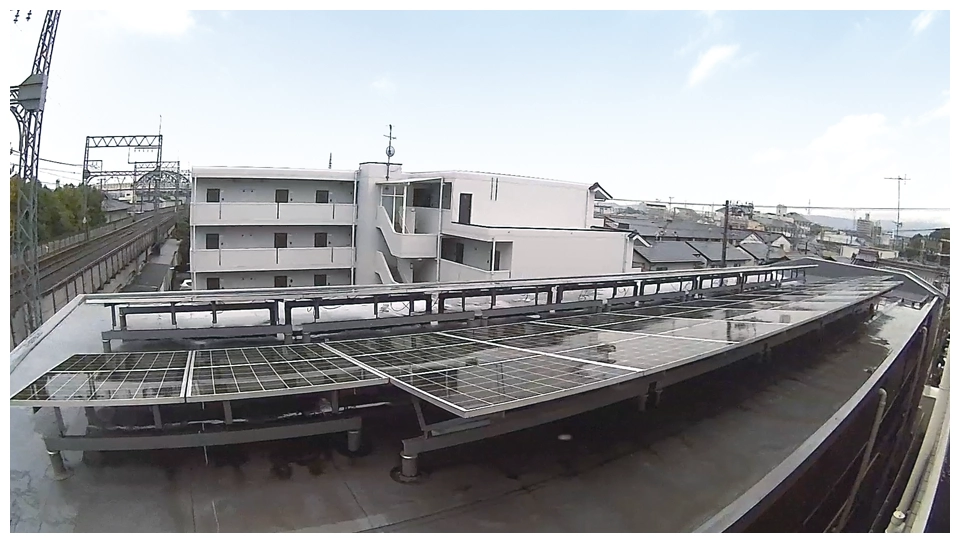

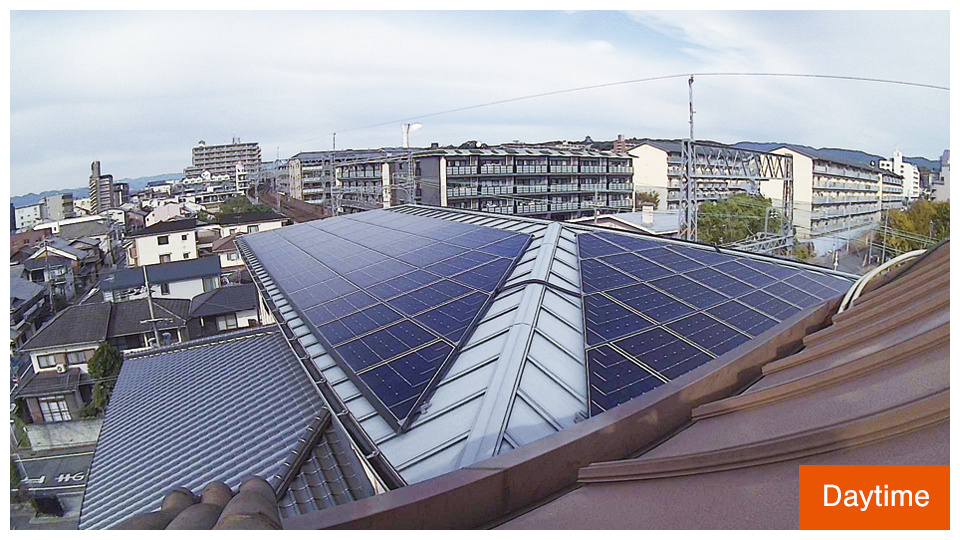

Wide-angle Capture
Wide-angle capture with a 118° horizontal, 65° vertical, and 140° diagonal field of view.

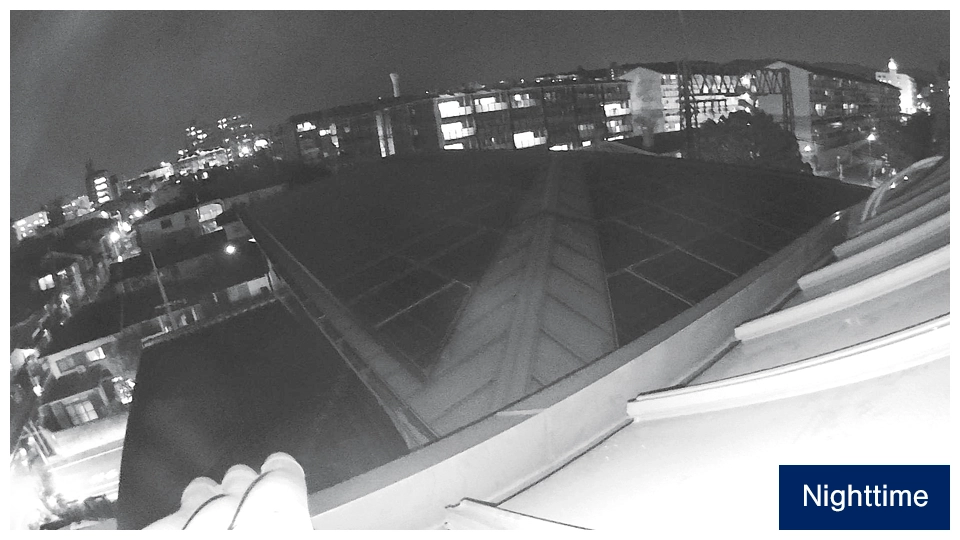

Night Vision
Equipped with an infrared illuminator effective up to 30m, reducing overexposure and preventing whiteout. Additionally, it automatically switches to night mode when the ambient light level drops below a certain threshold.
Retrofit Installation
Now available for retrofit installation on existing L・eye and Solar Legato packages.We offer three types tailored to different facility conditions.

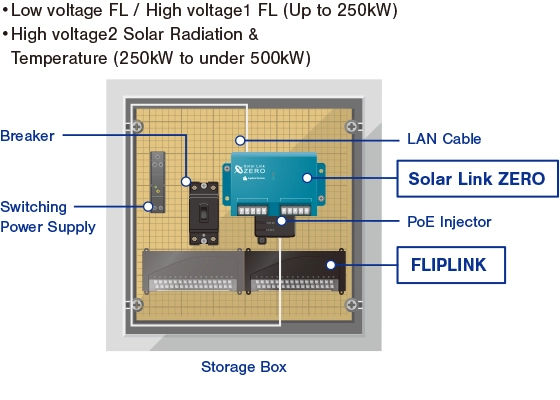

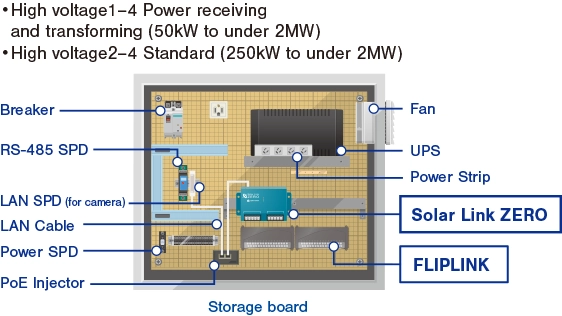

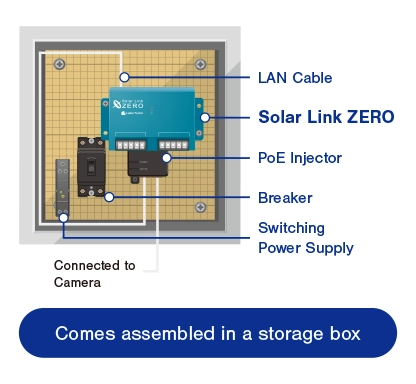

A simple installation type—just connect to a power source. All necessary equipment and communication lines are provided as a complete package.
Even if your package does not support the Standard Type, we can offer solutions through L・eye match and Solar Legato match.

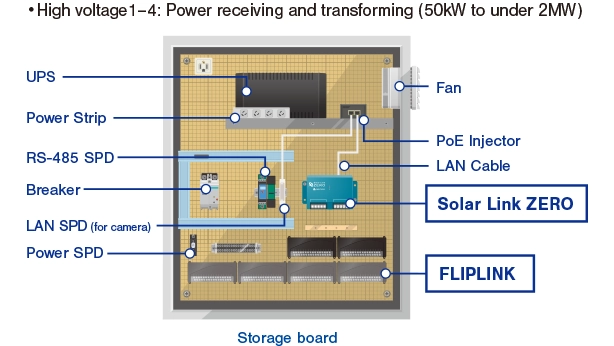

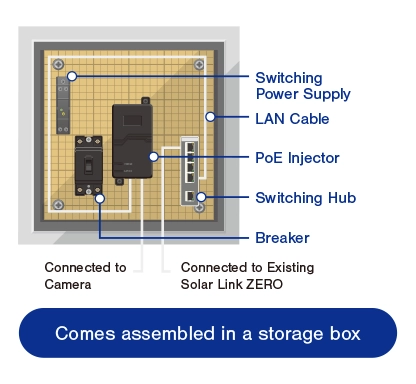

The necessary equipment is integrated into the storage box. It uses existing lines to achieve a lower price.
*Software updates and wiring must be handled by the customer.
*If an SPD is already included in the installed equipment, an additional LAN SPD will be provided.

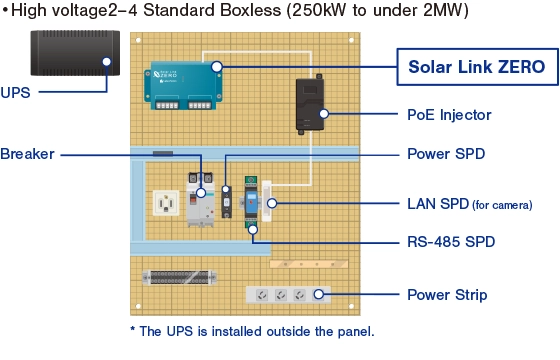

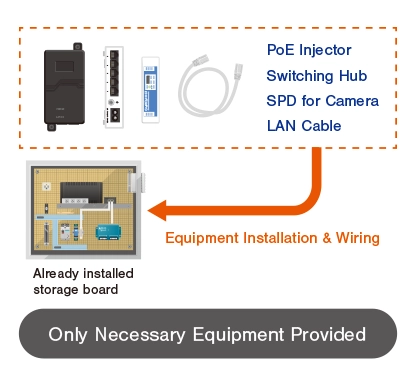

Only the minimum equipment is provided. Existing lines are utilized for a lower price.
*Software updates, equipment installation, and wiring must be handled by the customer.
Image Storage
Check Past Images
Stores images for up to 31 days, allowing you to review past images.
Server Storage
Images are stored on a server, eliminating the need to retrieve an SD card on-site.
○A contract for the L・eye Remote Monitoring System & Service is required.
○When installing outdoors, avoid direct sunlight.
* If mounting the web camera on a pole, a dedicated mounting bracket is required. Please check with your contractor for details.
○Equipment Warranty
【For New Installations】The measurement terminal and peripheral equipment for the camera are covered for the contract duration.The web camera unit and other equipment come with a one-year warranty.When extending the contract, the warranty for the measurement terminal and camera peripherals will continue.
【For Retrofit Installations】All equipment comes with a one-year warranty.
○Operating Temperature Range
Web camera: -30°C to 50°C
Storage Box: -20°C to 50°C (for Standard Type)
*The temperature range may vary depending on the type and storage box.
○Protection Rating
Web Camera: IP66, IK10
Storage Box: IP44
| Resolution | 640×360pixel |
|---|---|
| Field of View | Horizontal: 118°, Vertical: 65°, Diagonal: 140° *1 |
| Image Capture Frequency | Once every 15 minutes *2 |
| Night Vision | Infrared illumination / Automatic switching |
*1: Tilt, pan, and zoom operations are not supported.
*2: If communication between Solar Link ZERO and the server is interrupted, images will not be captured. Once communication is restored, images taken during the outage will not be available.Delays may occur depending on the operating environment.
